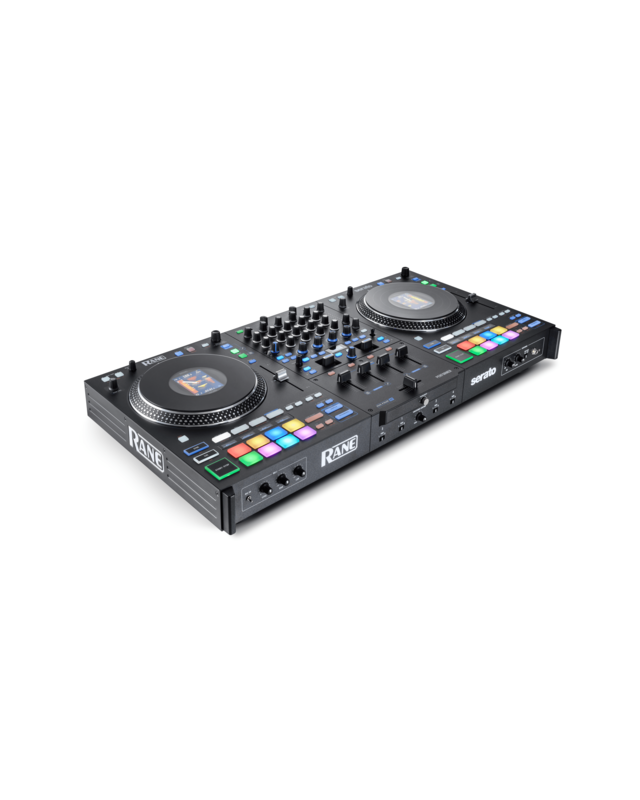

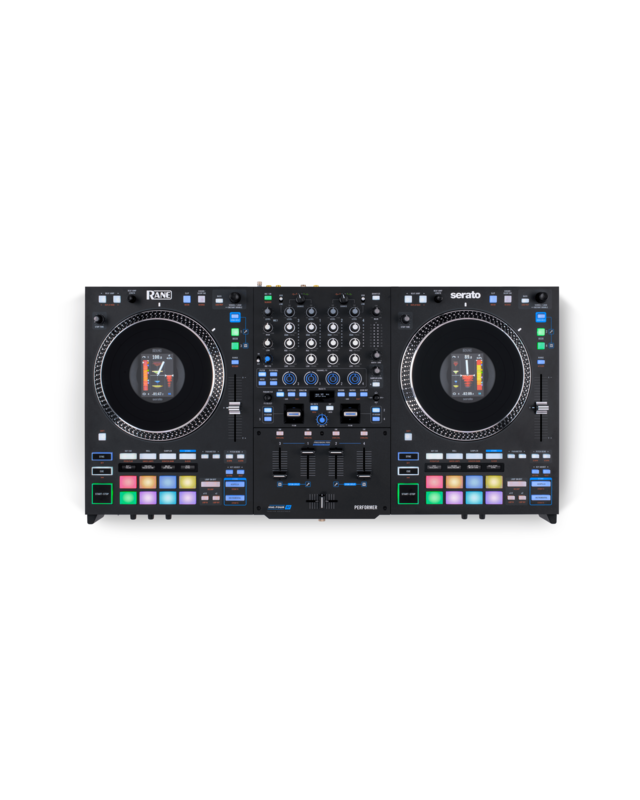

Designed for skillful showcasing and creative mixing, the PERFORMER is a
4-channel motorized DJ controller featuring RANE’s industrial build quality
and legacy sound. High-torque motorized platters, enhanced stems control
abilities, a MAG FOUR crossfader, and 4 PRECISION FEEL volume faders
make this controller an exceptional choice for performance-focused
professionals.
• High-torque motorized aluminum platters with magnetic acrylic vinyl-feel top platters
• 4-channel mixer sections with 4 dual rail, magnetic tension adjustable PRECISION FEEL FADERS
• Advanced Stems control features including STEM-SPLIT, STEM LEVEL, STEM Pad Mode, and instant Acapella/Instrumental buttons
• 3.5" wheel displays with multiple waveform and library views plus Day Mode
• MAG FOUR crossfader with external tension adjustment knob
• Dynamic internal FX engine with 22 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ Software FX
• 16 Performance Pads with dedicated OLED Pad Mode displays for visual
• feedback Deck selection buttons for mixing with up to 4 software decks
• 2 Line/Phono inputs for turntables or external decks
• Dual-USB for seamless DJ transitions
• XLR & RCA Main out, 1/4" Booth/Zone out, (2) stereo RCA line/phono inputs,
• and (2) XLR 1/4" combo jack microphone inputs
• Trusted RANE build and no-compromise sound quality
DIGITAL AUDIO
- Converters: Cirrus Logic, 24-bit PCM, 48 kHz
- Digital Signal Processing: 32-bit, Floating Point, Double precision
Dynamic Range (A-weighted, unity gain):
- ADC: 113 dB
- DAC: 113 dB
- CD Input to Analog Output: 110 dB
- CD Input to USB Output: 113 dB
- USB Input to Analog Output: 113 dB

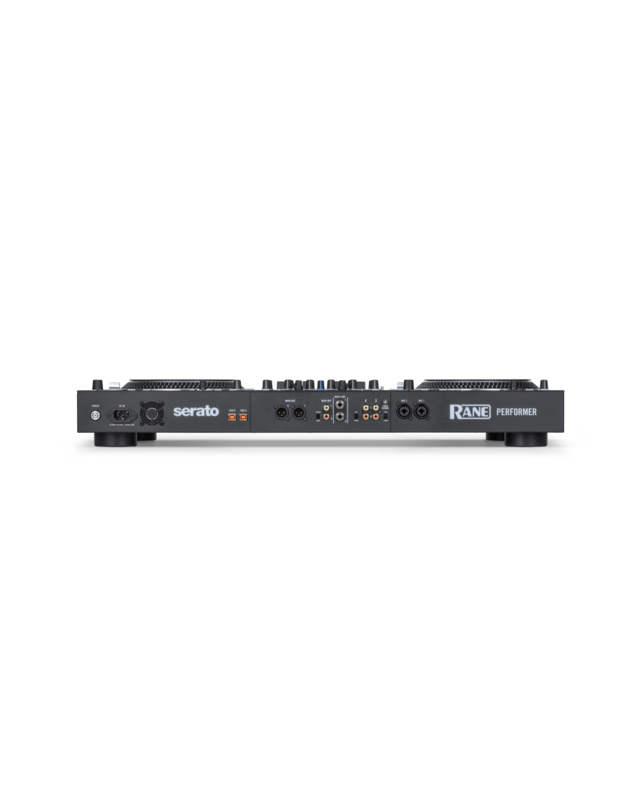

CONNECTIONS
(2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input
AUDIO OUTPUTS
Main Outputs (XLR):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair):
- Maximum Output: 4 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS):
- Maximum Output: 4 Vrms Voltage: (no load)
- Output Power: 50 mW (50 ohms)
- Dynamic Range (A-weighted): 108 dB
AUDIO INPUTS
Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS):
- Analog Gain: 25 dB
- Maximum Input: 110 mV
- Gain Trim: Off to +26 dB (unity at center)
- Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
Line:
- Maximum Input: 4 Vrms
- Gain Trim: Off to +12 dB
- Tone Control: 3-band, full-cut to +10 dB
- THD+N (20 kHz BW @ 1 kHz: 0.004%
Phono (RIAA):
- RIAA Curve: +/-0.25 dB
- Gain (@ 1 kHz): 31.5 dB
- Maximum Input (@ 1 kHz): 106 mV
- Dynamic Range (A-weighted): 102 dB
WHEEL DISPLAYS:
(2) 3.5” Color LCDs
PAD AND FX DISPLAYS:
(9) 128 x 32 Monochrome OLEDs
PADS:
(16) on/off multi-color back-lit pads (8 per deck, 9 modes each)
FADERS:
(1) MAG FOUR tension-adjustable crossfader with contour control
(4) PRECISION FEEL FADERS (channel faders)
POWER:
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 20 W
