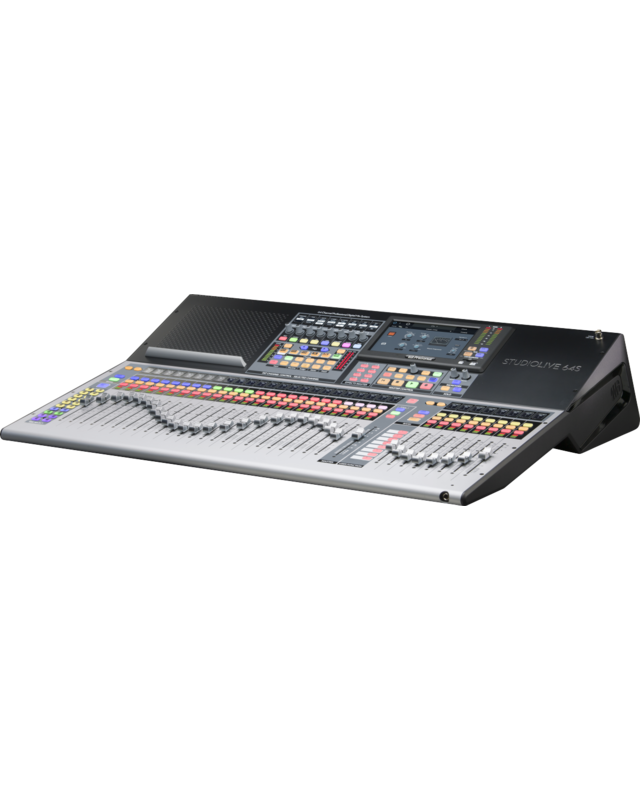

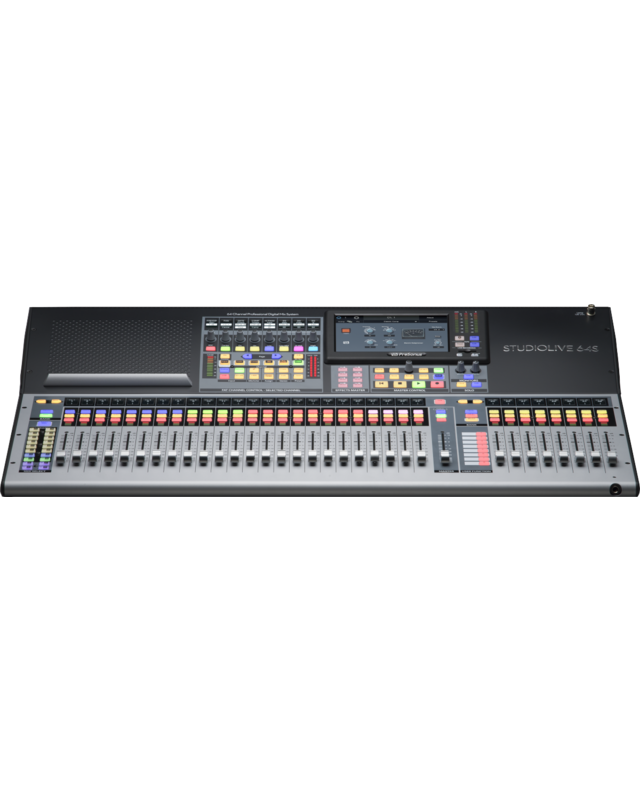

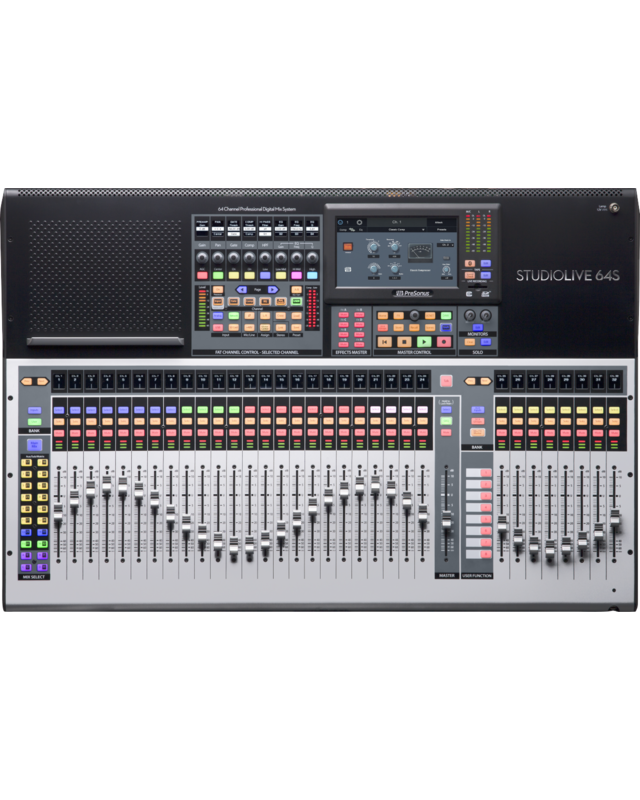

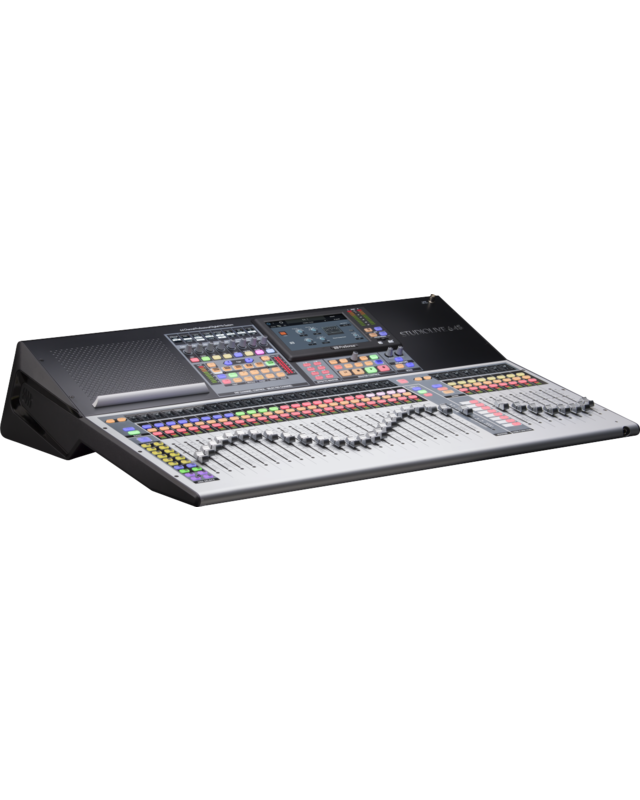

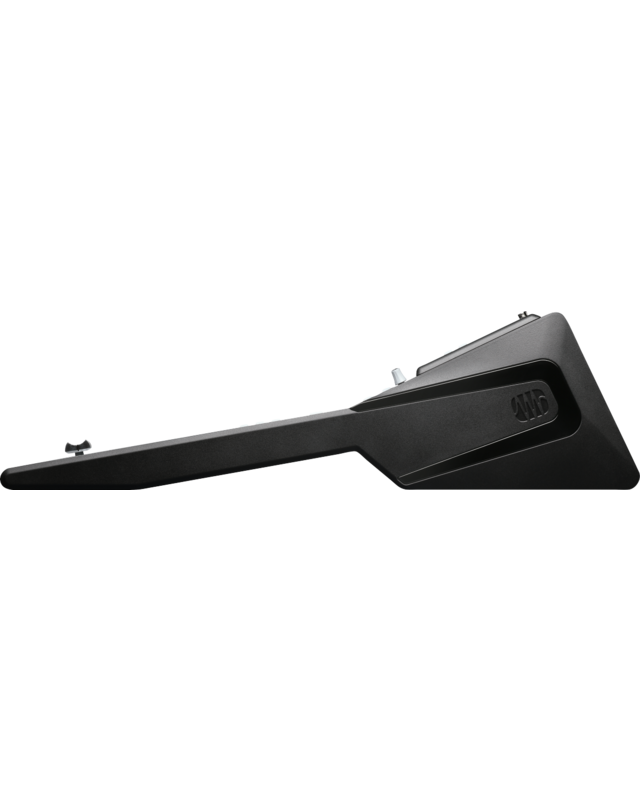

StudioLive SERIES III 64S Digital Console Mixer
DESCRIPTION
With the 64-channel StudioLive® 64S and a full suite of integrated software, PreSonus® delivers the most powerful and flexible digital console available for installed sound, touring, and recording—and the best value. Powered by the PreSonus quad-core FLEX DSP Engine, no other mixer can match its 128-channel (64x64) USB recording, 76 mixing channels, 43 buses, and an astounding 526 processors. Features such as password-protected user profiles for restricting feature access and mixer scenes organized by project, make the StudioLive 64S ideal for installed sound. Thanks to built-in AVB networking, the StudioLive 64S integrates with stage boxes, personal monitor mixers, switches, and more. Managing 76 total inputs is easy with 32 FlexMixes and 24 DCA groups. The Fat Channel processing section offers expandable plug-ins with vintage-style EQ and compression options on every channel and output bus.
FEATURES
- The most powerful and flexible digital console available for installed sound, touring, and recording with quad-core FLEX DSP Engine powering 526 simultaneous processors
- Fully recallable with touch-sensitive motorized faders

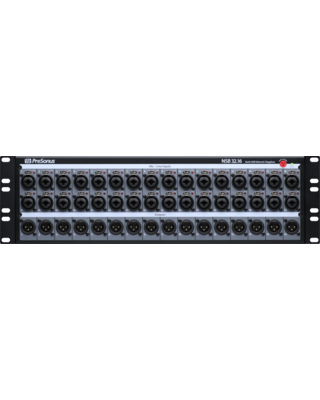

- Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and the SW5E AVB switch
- Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 32 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multieffects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
- Complete professional solution: suite of integrated software, including Studio One® Artist DAW
Inputs
1/4" TRS Female, Balanced
20-20 kHz (±0.5 dBu at Unity Gain)
10 kΩ
=+18 dBu
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
XLR Female, Balanced
65 dB (1 kHz at Unity Gain)
20-20 kHz (±0.5 dBu at Unity Gain)
0 dB to +60 dB (±1 dB)
1 kΩ
=+12 dBu (Unity Gain)
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
=+12 dBu, ±0.5 dBu
Outputs
20 Hz to 20 kHz, +/-0.5 dB
100 mW/ch. @ 60Ω load
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
1/4" TRS Female, Balanced
+18 dBu, ±0.5 dBu
100 Ohms
=+18 dBu, ±0.5 dBu

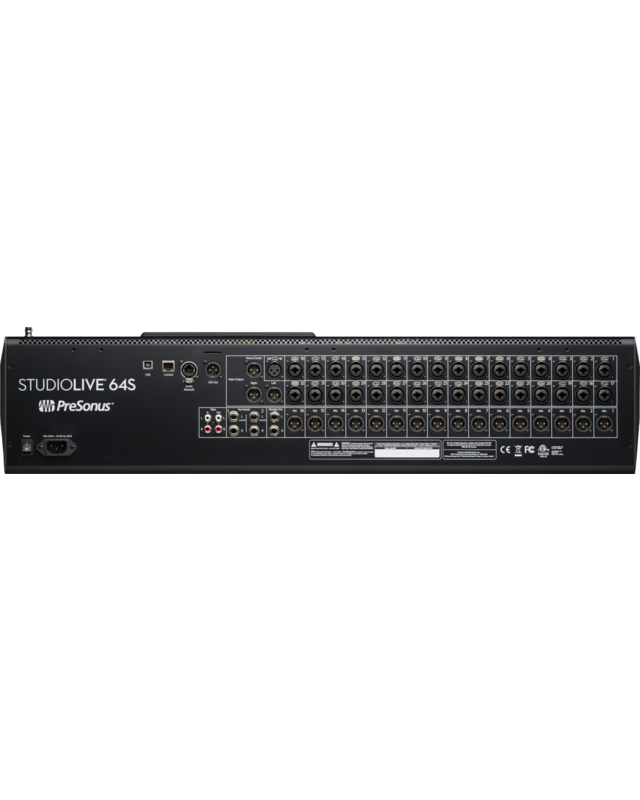

Hardware
XLR Male
Locking XLR Ethernet
4.1, Stereo
RJ-45
USB 2.0, Type-B
RCA Female, Unbalanced (Stereo Pair)
