BeschrijvingBlack LPG

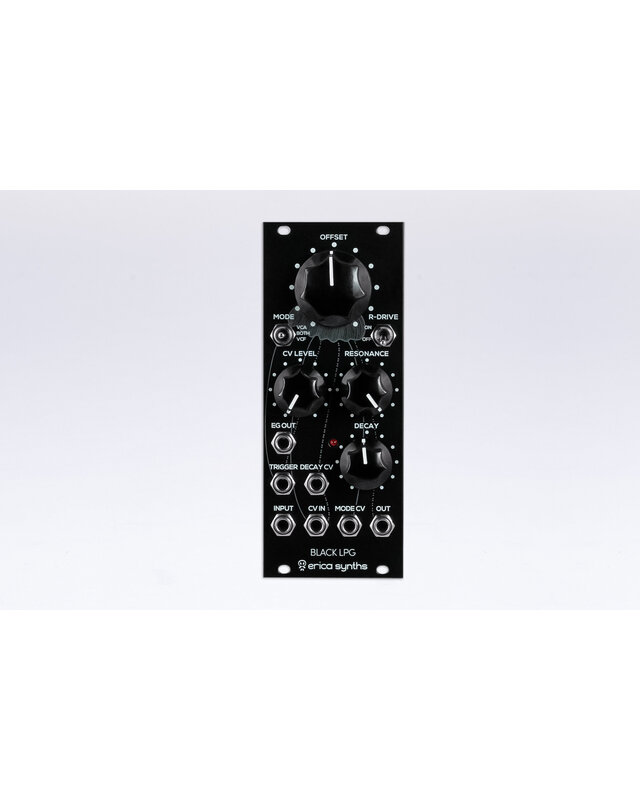

Erica Synths Black LPG is our take on Lowpass Gate idea – it’s designed from scratch featuring 2nd order lowpass VCF (the original Buchla lowpass gate was 1st order VCF) and VCA combo with distinct resonance circuit on top. Voltage control over VCF cutoff frequency/VCA offset and mode (VCF/VCF+VCA/VCA), as well as built in decay envelope generator makes it a versatile module for sound shaping in any modular setup.
Features
- Three vactors for 2nd order VCF
- VCF/VCF+VCA/VCA modes
- Manual and voltage controlled cutoff/offset
- Manually and voltage controlled mode selection
- Manually resonance depth control
- Resonance overdrive switch
- Built in decay envelope generator
- Manually and voltage controlled decay time
- Envelope CV output
- Skiff-friendly design
| Audio output amplitude | 10Vptp |
| CV range (full span) | -5V - +5V |
| Max Decay time | 4'' |
| Panel width | 10HP |
| Module depth | 35mm |
| Power consumption | 44mA@+12V, 45mA@-12V |
