Bastl Instruments

ABC

€139,00 incl. BTW
Op voorraad(Magazijn): Dit artikel wordt doorgaans binnen 7-14 werkdagen verzonden! Neem voor meer informatie contact met ons op via e-mail: [email protected]
Beschikbaar in de winkel: Beschikbaarheid controleren

Beschikbaar in de winkel

Sluiten
Verplichte velden:
    Payment options
    Deliveries are carried by
    Fysieke winkels in Riga en Rotterdam
    14 dagen geld-terug-garantie
    Koop nu, betaal later opties (in3, Klarna)
    BeschrijvingABC

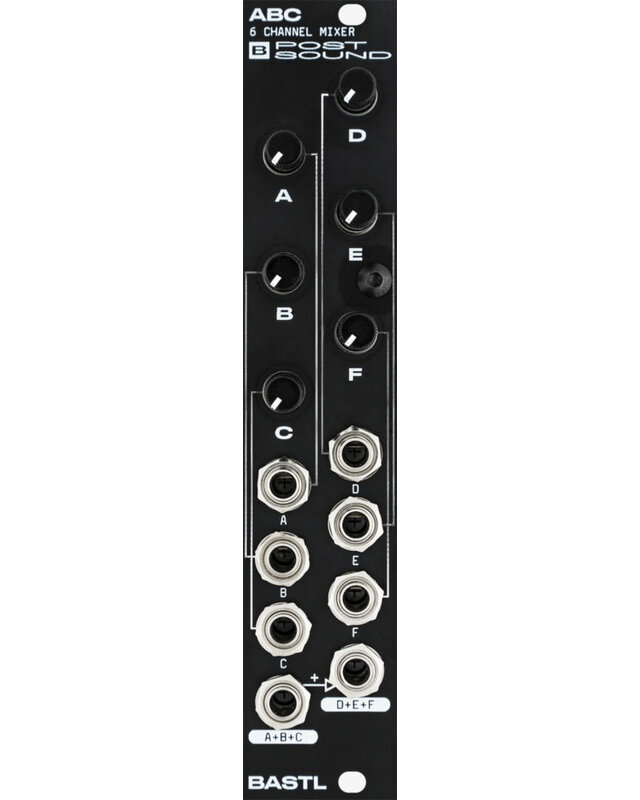

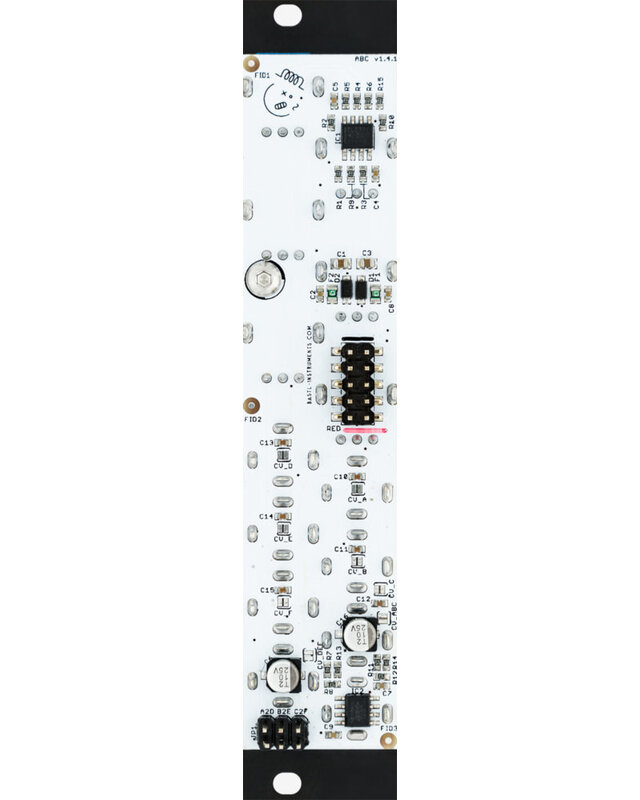

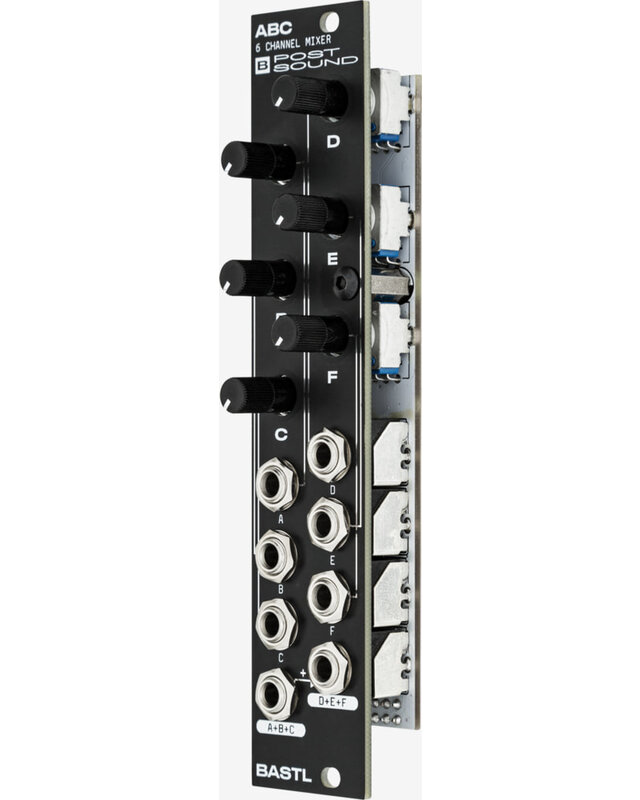

    ABC is a simple 6 channel signal mixer. It has 6 inputs – A, B, C, D, E, and F – and two outputs – A+B+C – which is mixed into the D+E+F output if nothing is inserted in the A+B+C jack. ABC is designed to mix audio signals but can be modified to mix CV signals instead. There are 6 solder jumpers on the backside, which can be connected to turn the ABC mix into a CV mixer.

    Simple yet versatile: ABC mixes mono, stereo, or CV signals

    There are also 3 jumpers on the backside which can be used to normalize inputs A to D, B to E, and C to F. This is useful if you would like to use the ABC mix as a 3 channel stereo mixer (using both outputs and having separate volume control for left and right channel).

    Features

    • 6 channel mixer
    • 6 inputs A,B,C,D,E,F
    • 2 outputs A+B+C and D+E+F (A+B+C is mixed into D+E+F if no jack is inserted in A+B+C)
    • 3 jumpers to select normalization of inputs A to D, B to E, C to F (useful for stereo mixing)
    • inputs are AC coupled
    • there are solder jumpers for changing the inputs to DC coupling (then it can be used for mixing CV signals)

    Technical details

    • 5HP
    • 35 mm deep (skiff friendly)
    • current: +12 <10mA, -12 <10mA
    • PTC fuse and diode protected 10 pin power connector

    Downloads

    • user manual pdf
