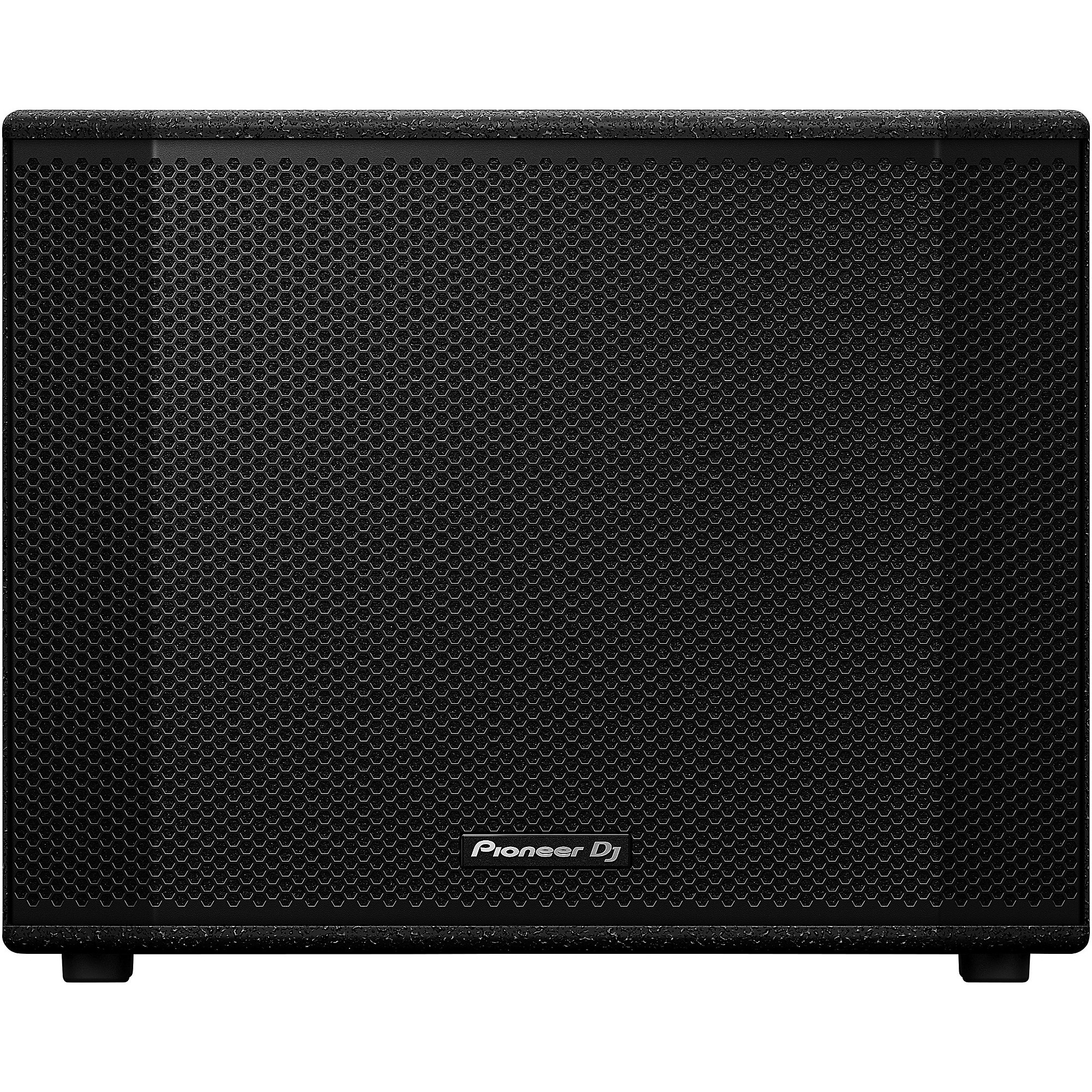

XPRS1152ST

Deep, Defined Bass for Demanding Setups
The Pioneer DJ XPRS1152ST is a professional 15” active subwoofer designed to deliver rich, punchy low-end reinforcement in both portable and installed sound systems. With a formidable 4,000W peak Class-D amplifier, a 15” ferrite woofer, and advanced DSP functionality, it ensures high-impact bass response that enhances the performance of any full-range setup.

Precision Low-End Control
Thanks to the 3” voice coil and extended cone excursion, the XPRS1152ST delivers powerful yet articulate bass down to 45Hz, while peaking at a sound pressure level of 129dB. Whether you need impactful thump for EDM sets or a tight bottom end for live instruments, this sub handles it with clarity and force.

Smart DSP and Flexible Integration
Choose from three DSP modes — Boost, Extended LF, and Normal — to shape the low end to your environment or taste. An adjustable low-pass filter (80Hz, 100Hz, 120Hz) ensures seamless integration with your top speakers, making this sub an ideal fit in flexible configurations.

Rugged and Road-Ready Design
Built with a durable plywood cabinet, heavy-duty grille, and dual ergonomic handles, the XPRS1152ST is ready for the demands of touring, events, and installations. A standard M20 pole mount provides stability when stacking, and temperature-controlled fan cooling ensures long-lasting performance even at high volume levels.

Key Features

• 4,000W Class-D amplification with wide dynamic headroom

• 15” ferrite woofer with 3” voice coil for powerful, accurate bass

• 45Hz–120Hz frequency response; max SPL 129dB

• Three DSP Modes: Boost, Extended LF, Normal

• Selectable low-pass filters: 80Hz / 100Hz / 120Hz

• Durable plywood cabinet with M20 pole mount

• Multiple input/output options for versatile connection

Technical Specifications

• System Type: 15” active vented subwoofer

• Amplifier Power: 4000W peak (Class D)

• Woofer: 15” ferrite with 3” voice coil

• Frequency Response (-6dB): 45Hz–120Hz

• Max SPL: 129dB

• DSP Modes: Boost / Extended LF / Normal

• LPF Options: 80Hz, 100Hz, 120Hz

• Inputs: Left Mono (Combo), Right (Combo)

• Outputs: Left Mono (XLR), Right (XLR)

• Cooling: Temperature-controlled fan

• Enclosure: Plywood, black finish, metal grille, rubber feet

• Mounting: M20 threaded pole socket

• Power Supply: AC 110–240 V, 50/60Hz, 800W max

• Dimensions: 580 × 450 × 503 mm (22.83” x 17.72” x 19.80”)

• Weight: 26.6 kg (58.7 lb)

Applications

• Live sound reinforcement for bands and vocalists

• Mobile DJ systems requiring punchy, reliable sub bass

• Installed sound systems in clubs, event spaces, and theaters

• AV setups demanding clean low-frequency performance

• Touring rigs needing road-tough, high-powered subwoofers
