Contemporary Version Of A Classic Sound
The WA-47jr is a contemporary multi-pattern, transformerless, FET condenser mic designed to deliver the sound profile of the coveted '47-style tube microphone at an unthinkable price. Like the original vintage U47 tube microphone, the 47jr features a proper large-diaphragm 34mm K-47-style capsule. This capsule is so revered for its ability to capture detail with analog depth, that it has been used as the basis for several ultra-unattainable microphone designs of the last half-century. Combining possibly the greatest condenser capsule of all time with our carefully crafted, modern circuit delivers that analog warmth and pristine detail for capturing everything from vocals to toms to acoustic guitar. With three polar patterns, a -10dB pad, and 70Hz Hi-Pass filter, the WA-47jr will easily become the most versatile mic in your locker.
Warm Audio WA-47jr Large-diaphragm FET Condenser Microphone Features:

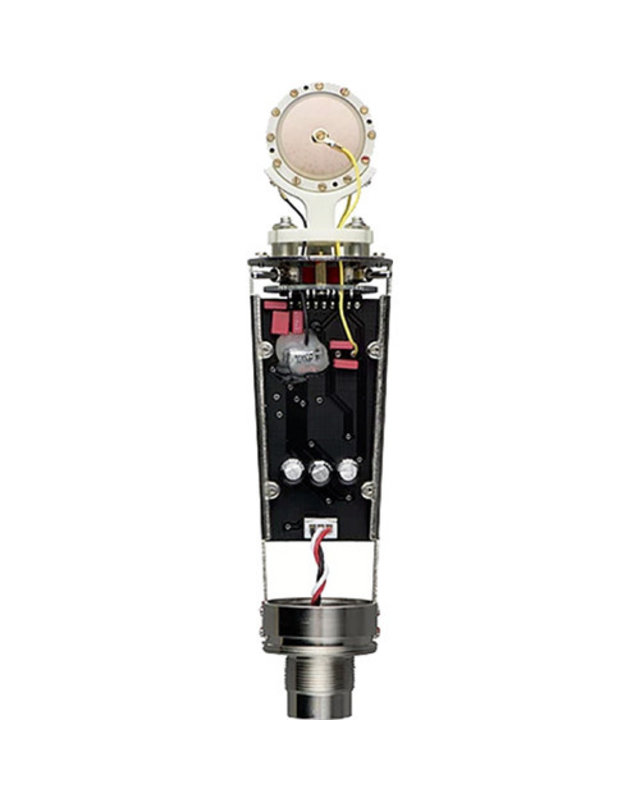

- Fully discrete, transformerless signal path
- Custom ’47-style k47 34mm gold-sputtered, dual-diaphragm, single–back plate, 6 micron Mylar capsule
- Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors
- Cardioid, figure-8, and omnidirectional polar patterns
- 10dB pad; 70Hz highpass filter
- Self-noise: 9dBA
- Dynamic range: 138dBA
- Maximum SPL: 147/157dB (at 1kHz, 1 Kohm, 0.5% THD, 0/-10dB)
- Frequency range: 20Hz–20kHz
- Sensitivity: 10mV/Pa or -40dB
- Output impedance: 100 ohms
- Rated load impedance: ≥1 Kohm
- Maximum output: 16dBu at 1kHz, 1 Kohm, 0.5% THD
- S/N ratio: 85dBA (IEC651)
- Equivalent noise: 9dBA (IEC651)
- Dynamic range: 138dBA (IEC651)
- 48-volt phantom powered
- 3-pin gold-plated XLR connector

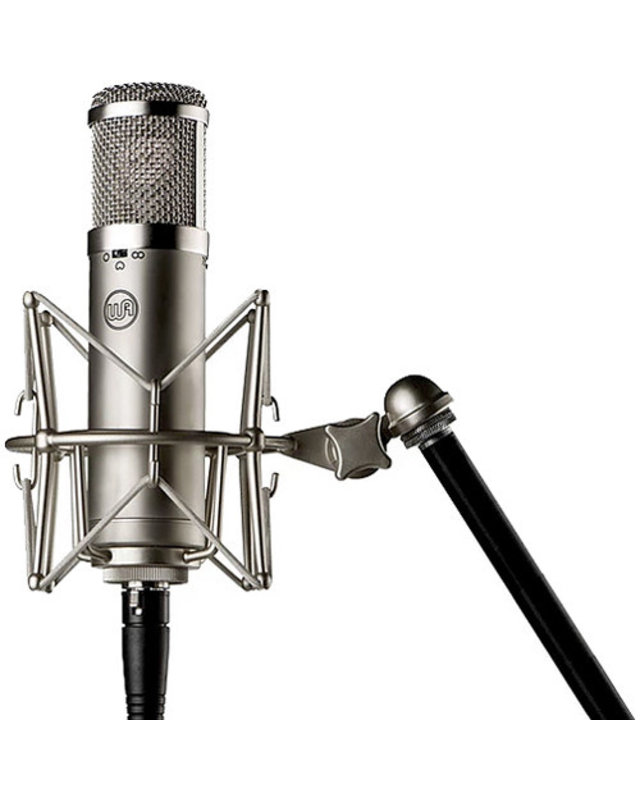

- Includes shockmount, hardmount, and zipper storage pouch
