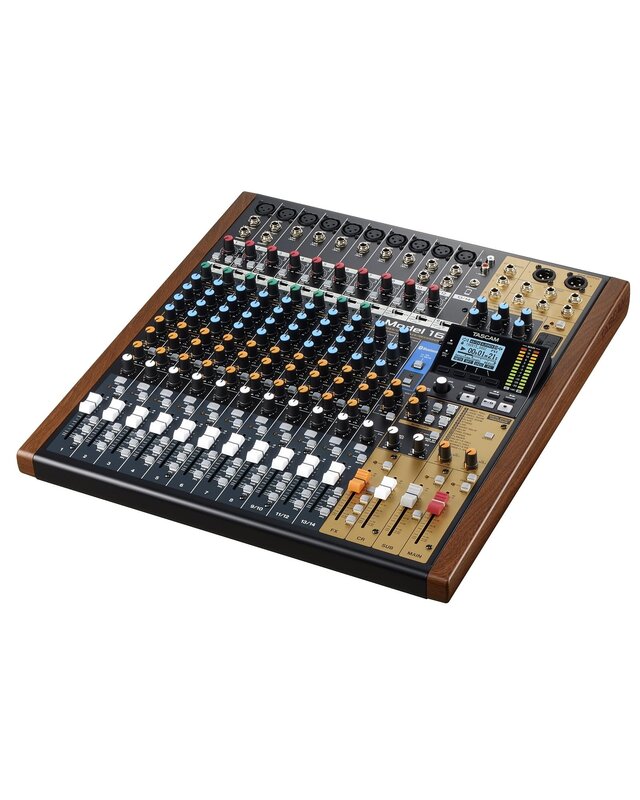

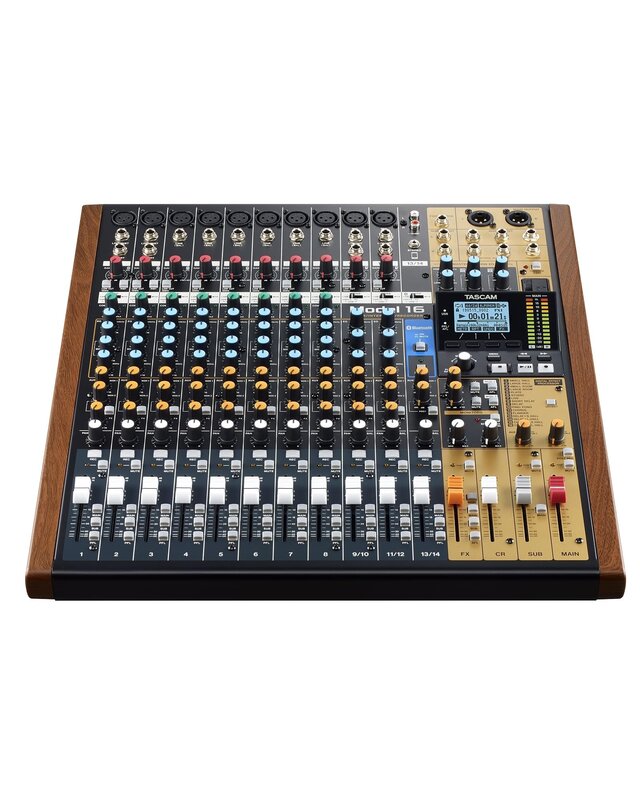

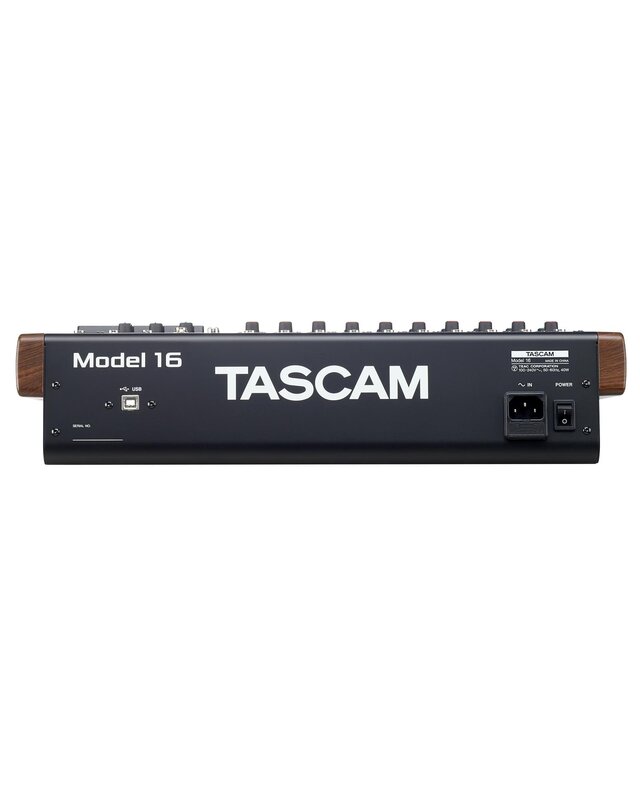

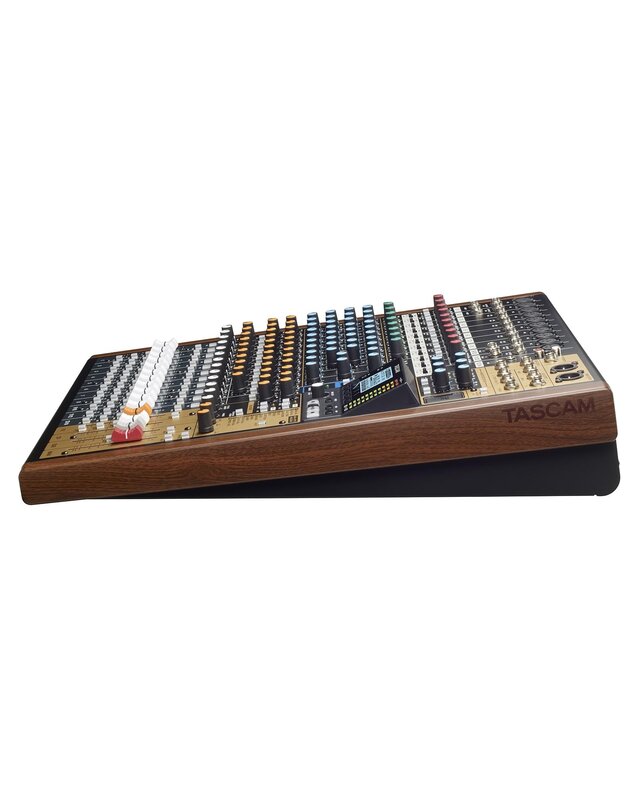

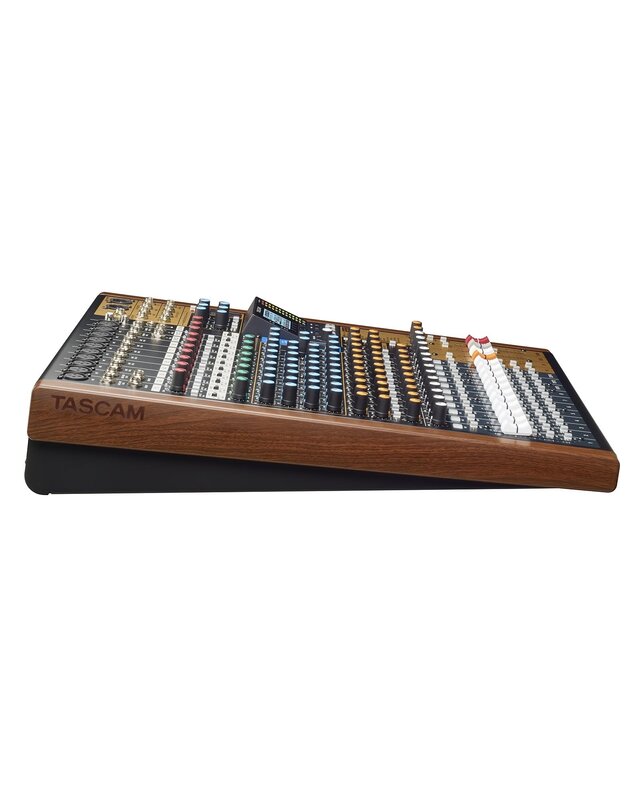

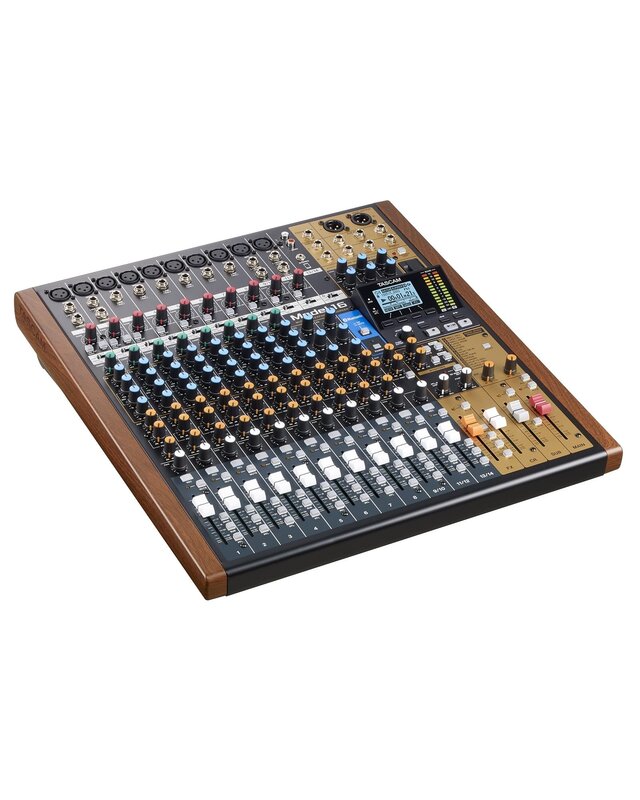

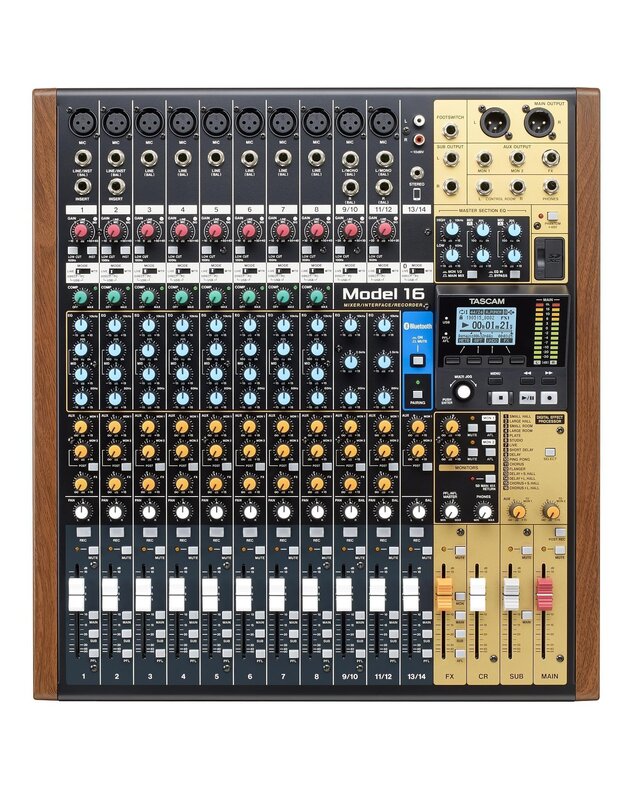

Model 16

• 14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface

Mixer features

• 14 analogue inputs
  • 10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels
  • 12 balanced line inputs (8 mono, 2 stereo)
  • One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14)
  • Inserts on input channels 1 and 2
  • Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses
• Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))
• Three stereo outputs with independent master faders (Main, Sub, Control Room)
• One-knob compressor for channels 1–8
• Switchable low-cut filter (100 Hz) for eight mono and two stereo channels
• Switchable Mute, Stereo/Sub routing and PFL on each input channel
• Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels
• Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs
• Built-in Bluetooth receiver for wireless playback
• On-board effects processor
  • 16 effects types
  • Can be used on all input channels, monitor busses, sub and main stereo bus
  • Can be turned on/off by an optional footswitch (Tascam RC-1F)
• 60-mm faders on each channel
• 12-segment LED output level meters
• XLR balanced outputs for main stereo bus

• TRS balanced outputs for sub, control room, monitor 1/2 and effects send
• Headphones output with level control (80 mW per channel)

Recorder features

• Tascam multi-track recording engine
• Uses SD cards as recording media (up to 512 GB, Class 10 or higher required)
• Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer
• Recording format: WAV (BWF), 44.1/48 kHz, 16/24 Bit
• Playback format: WAV (BWF)
• Overdubbing, punch in/out recording (eight channels maximum)
• Multi-track playback for advanced live performance
• Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments

Audio interface features

• USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
• Transfer to computer: 16 channels (all 14 inputs + stereo mix)
• Transfer from computer: 14 channels, assignable to each channel input
• Audio resolution 44.1/48 kHz, 16/24 bit

Other features

• Simple and quick menu operation with multi-jog dial
• 19-inch rack installation possible (with optional rackmount kit)
• Internal power supply with removable power cord
