Description
Matrix 2

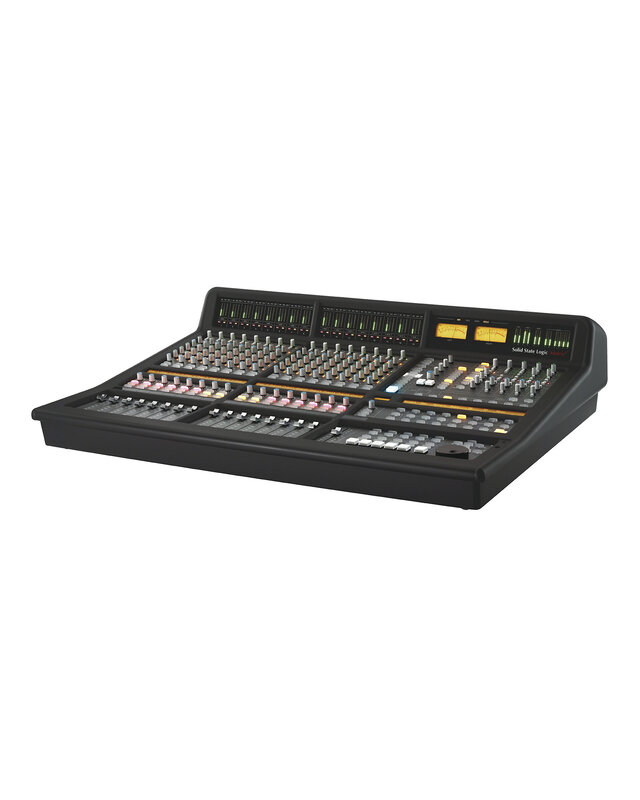

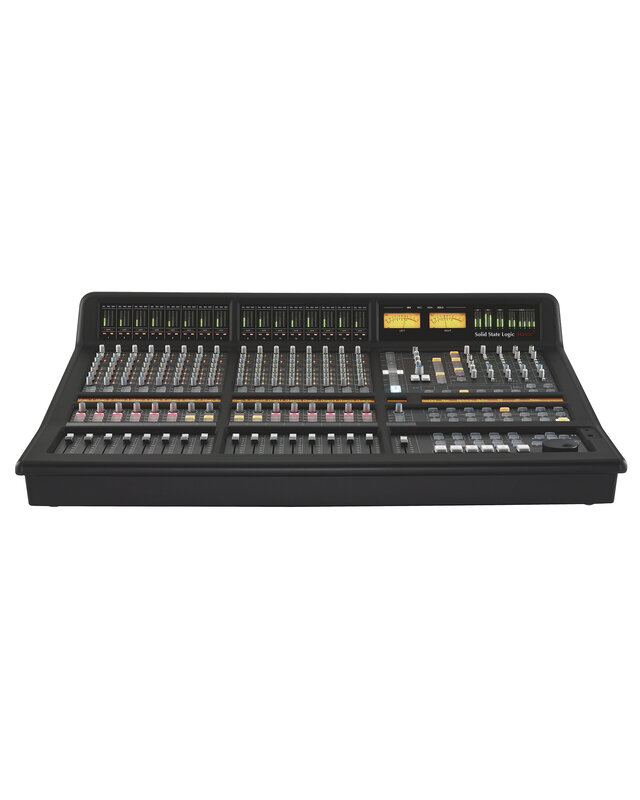

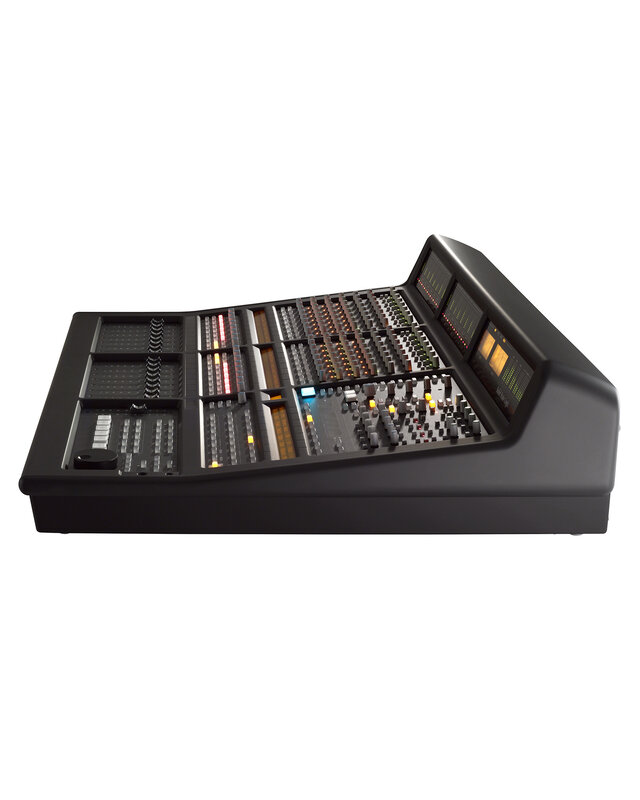

Matrix2 is the ideal console/controller for your hybrid production studio. It is the most elegant solution available today for those who wish to incorporate the sonic advantages of SSL summing and a collection of boutique analogue mic pre's & processors into their DAW centred studio workflow. The analogue side of Matrix2 combines: a 40 input SuperAnalogue™ summing mixer, fully featured Monitor Switching & Talkback and an in-built 'Insert Router' which enables individual or chains of analogue outboard processors to be inserted quickly and easily. The 16 + 1 fader hardware control surface swaps with a single button push from control over the analogue console signal path to functioning as a comprehensive multi-layer DAW control surface.
Designed to be at the heart of your everyday creative process, Matrix is built to meticulous SSL hardware standards, to withstand even the most intensive studio use. Fully equipped to partner your monitors, workstations and outboard gear, Matrix lets you shape your project studio around the way you work.
Integrate your analogue outboard
Imagine being able to access your favourite combinations of analogue outboard equipment and apply them to your project without ever leaving the console.

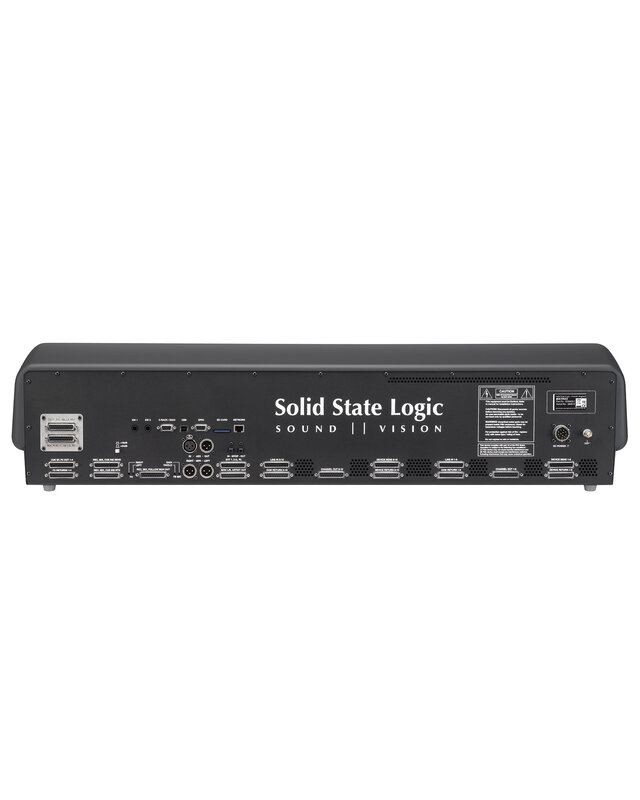

The Matrix2 Insert Router is like having a supremely versatile and controllable patch bay built into the console. You physically connect up to 16 hardware devices to the 16 insert points on the console (using rear panel standard D-Sub connections) but unlike a traditional console you are able to select which of these devices are applied to which console channels 'on the fly'. The system even lets you build 'chains' of processors so that you can immediately recall and insert a favourite combination of mic pre, EQ and Dynamics... or instantly swap individual processors within the chain... or instantly change the process order of the chain...without leaving the console. With Matrix2 Devices and chains can either be created and inserted using hardware buttons on the console surface or a simple drag and drop software interface running on a computer. Matrix2 is the closest thing you will find to using hardware devices like software plug-ins within your DAW. The workflow of the Insert Router may feel like software but the signal path is 100% SSL SuperAnalogue™ hardware.
δelta-Control (δ-Ctrl)
The unique new SSL console automation system unites the very best of automation in the analogue console domain with DAW based workflow.
The δ-Ctrl Single Fader Plug-in is a native AAX/AU/VST/VST3 plug-in that allows automation of Matrix channel volume as if it were a DAW plug-in. Inserting 16 instances into the DAW session will allow control of volumes and cuts for all 16 Matrix channels. The automation system in the DAW is used to record and playback Matrix volume control data entered either directly from the console faders or from the fader in the plug-in GUI. Matrix’ Volume and Mute switch are represented as plug-in parameters in the δ-Ctrl plug-in GUI and their automation data is recorded to the automation lane of the selected DAW channel. In playback, the plug-in converts the stored automation data from the DAW into δ-Ctrl messages and routes these back to Matrix via the network connection.
16-Fader Matrix Plug-In
The 16-fader Delta Control Matrix plug-in provides compatibility to Logic users, as well as offering an alternative workflow to the Single Fader plug-in users. The plug-in is available in all formats including AAX/AU/VST3/VST. The 16-fader plug-in allows users to write automation for Matrix’ 16 channel faders, mutes, and FX sends from one plug-in window, solving Logic’s inherent limitation of only being able to write data to one plug-in at a time.
More information you can find here: Solid State Logic SSL Matrix 2
