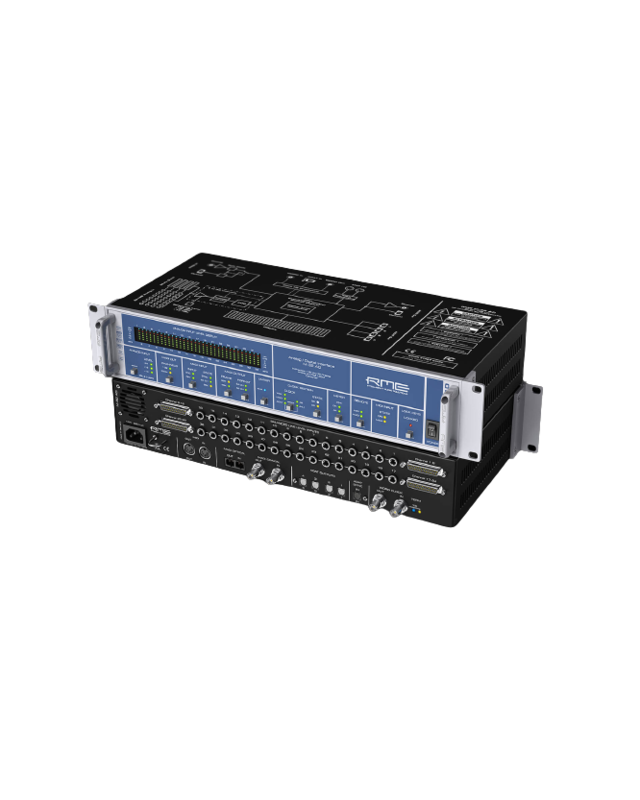

RME M-16 DA

THE M-16 DA IS FULLY IDENTICAL TO THE M-32 DA, WITH THESE EXCEPTIONS:

• only one 16-channel DA board fitted
• no fan
• lower power consumption, 40 Watts

Features

The M-32 DA offers an outstanding DA conversion from MADI and ADAT formats in a compact 19" unit with only 2U height. The balanced analog outputs based on RME's reference design from the ADI-8 QS guarantee excellent S/N and THD specs across a wide analog level range. Three different hardware levels are available. Using up-to-date converter technology, the device not only works up to 192 kHz, but also reaches a real-world signal-to-noise ratio of 118 dBA - on all channels. The units have separated driver stages for the TRS and D-sub outputs. The servo-balanced TRS jacks will work up to +21 dBu. When selecting +24 dBu the balanced D-sub connector outputs will provide the higher output level while TRS stays at the +19 dBu setting.

SteadyClockTM guarantees perfect sound quality through efficient jitter suppression, making the device completely independent from the quality of external clock signals. Intelligent Clock Control not only displays every clock status by means of flashing LEDs, but will also retain the last valid input sample rate in case of failure of the external source. Other renowned RME technologies like SyncCheck allow quick detection of clock problems.

All M-series converters are fully remote controllable and configurable via MIDI. Each unit's complete status can be monitored, including all the front panel's displays. Individual IDs can be set for each unit, for separated control of multiple units via a single MIDI channel. Control software for Mac and PC is supplied and allows easy remote control, also with MIDI transfer via MADI (MIDI Extender).

The M-series has optical and coaxial MADI inputs. In case of failure of an input signal, the source is switched immediately, if a valid signal is present on the other input.

The M-32 DA's four ADAT inputs provide simple connectivity with other studio equipment. A combination with RME's HDSPe RayDAT makes a perfect partnership, realizing the transfer of 32 channels from a Mac or PC with regular optical Toslink cables at an unbeatable price.

All settings are retained when the unit is powered off.

More information you can find here: RME M-16 DA
