Description

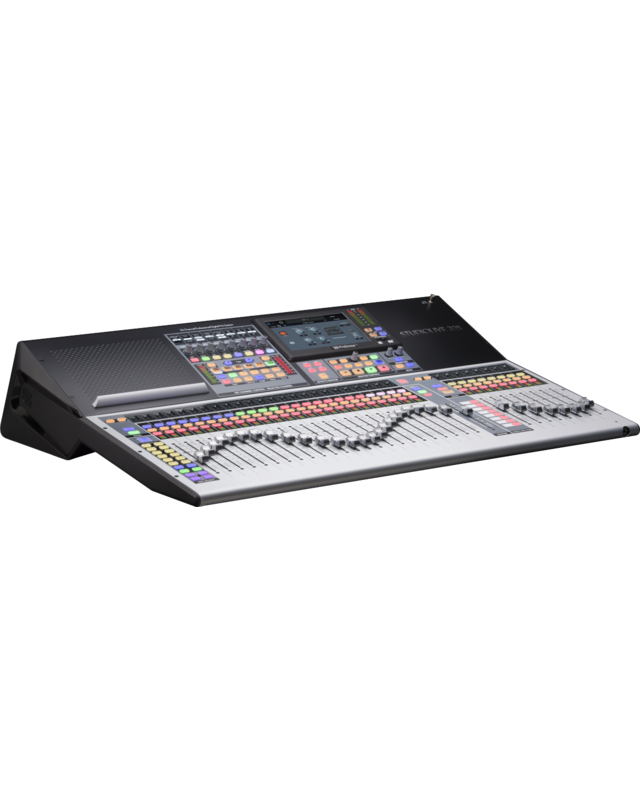

StudioLive 32S
FEATURES
- Portable, and flexible digital console for installed sound, mobile applications, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
- Fully recallable, 40-input, 32-channel digital mixing console
- Built-in AVB networking creates a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
- Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture.
Performance
24
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
+18 dBu
Electronics
1/4" TRS Active Stereo
220-240V EU
85W (Continuous)
48 VDC, Switchable Per Channel (±2 VDC)
Inputs
1/4" TRS Female, Balanced
20-20 kHz (±0.5 dBu at Unity Gain)
10 kΩ
=+18 dBu
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
XLR Female, Balanced
65 dB (1 kHz at Unity Gain)
20-20 kHz (±0.5 dBu at Unity Gain)
0 dB to +60 dB (±1 dB)
1 kΩ
=+12 dBu (Unity Gain)
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
=+12 dBu, ±0.5 dBu
Outputs
20 Hz to 20 kHz, +/-0.5 dB
100 mW/ch. @ 60Ω load
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
1/4" TRS Female, Balanced
+18 dBu, ±0.5 dBu
100 Ohms
=+18 dBu, ±0.5 dBu
100 Ohms
Hardware
XLR Male
Locking XLR Ethernet
4.1, Stereo
RJ-45
USB 2.0, Type-B
RCA Female, Unbalanced (Stereo Pair)
