DescriptionBH1S

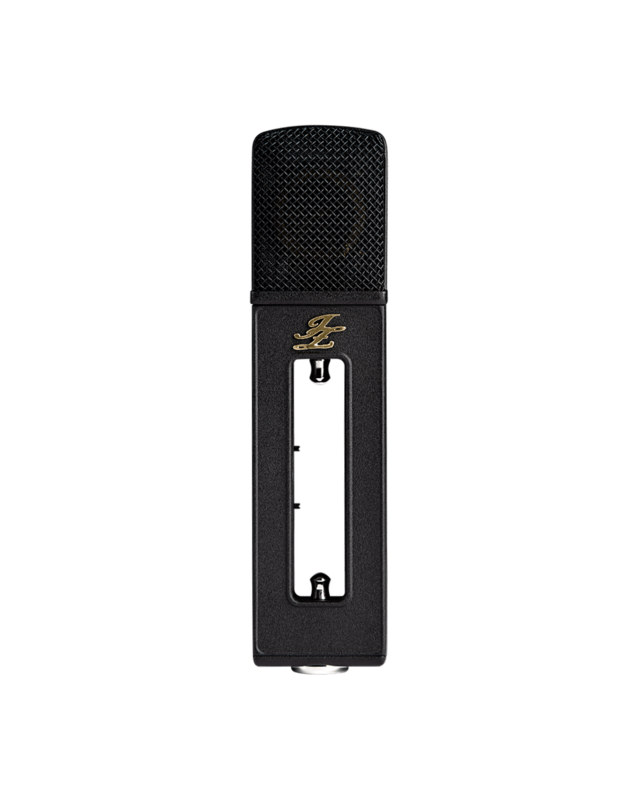

The JZ Microphones BH-1S Black Hole Microphone is a fantastic vocal mic that features 3 polar patterns. As a matter of fact, it is great on every application it is used! It offers unbelievable clarity and definition, smoothness and feel, and full transparency.
The JZ Microphones BH-1S is extremely versatile and perfect for day to day recording in any world-class, project or home studios.It is an amazingly versatile microphone, but the most common applications engineers prefer are male and female vocals, any acoustic stringed instruments, piano, acoustic drum set and percussion, saxophone and other brass instruments.
JZ Microphones BH-1S Black Hole Microphone Features
- 2 separate, back to back placed single large diaphragm Golden Drop capsules (GDC2)
- Innovative and very easy to use shock-mount included
- Class A discrete electronics, extremely high quality electronic components
- 0.4% component selection tolerance
- 3 polar patterns: cardioid, figure of 8, omni
- -10 and -20dB PAD
JZ Microphones BH-1S Black Hole Microphone Specifications
- Transducer type: Electrostatic
- Operating principal: Pressure gradient
- Diaphragms active diameter: 2 x 27 mm
- Frequency range: 20 Hz to 20 kHz
- Polar pattern: Omni / Cardioid / Figure - 8
- Pad switch: -20db /-10db
- Output impedance: 50 ohms
- Rated load impedance: >250 ohms
- Suggested load impedance: 1000 ohms
- Sensitivity at 1000 Hz into 1000 ohms load: 18 mV/Pa
- S/N Ratio CCIR 468-3 weighted: 75,5 dB
- S/N Ratio DIN/IEC 651 A-weighted: 86,5 db-A
- Equivalent noise level DIN/IEC A-weighted: 7,5 dB-A
- Maximum SPL for 0.5% THD at 1000 ohm load: 134,5 dB
- Dynamic range of the microphone preamplifier: 127 db
- Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V
- Current consumption: 1,5 mA
- Output connector: 3-pin XLR male, gold plated contacts
- Signal polarity: Positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
- Dimensions: 203 x 51 x 28
JZ Microphones BH-1S Black Hole Microphone Applications
- Acoustic Guitar
- Male Vocals
- Wind Instruments
- String Instruments
JZ Microphones BH-1S Black Hole Microphone Includes
- BH-1S Black Hole Microphone
- Shock-Mount
- Thumb Screw
- 5 Year Warranty
More information - JZ Microphones
