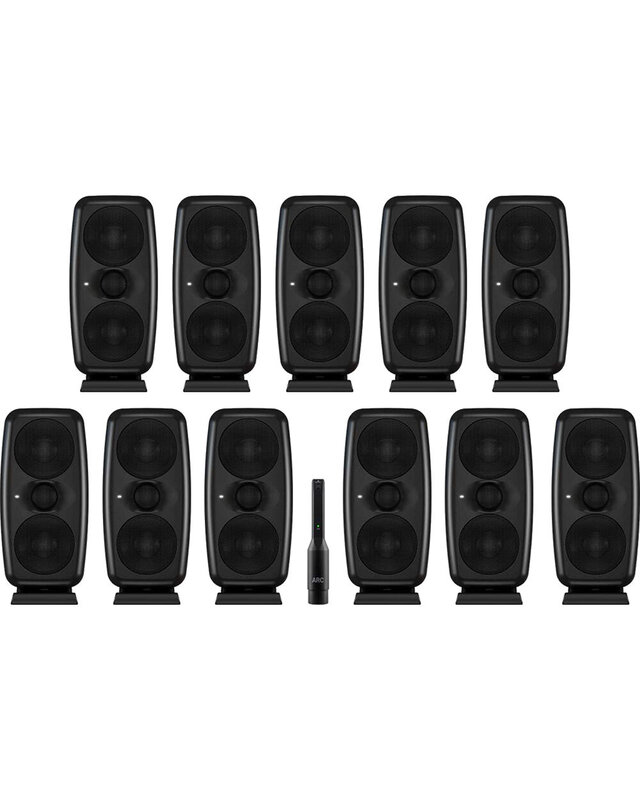

iLoud MTM MKII Immersive Bundle 11

Immersive Audio Re-Invented

With the rise of spatial audio, studios of all sizes are adopting multichannel monitoring systems, including 7.1.4 setups and beyond. The iLoud MTM speakers redefine immersive audio reference systems, equipped with features designed to elevate your Atmos® mixes to the next level.

The iLoud MTM boasts impressive low-frequency extension for its compact size. However, using its lowest cutoff point requires reducing the maximum SPL. This setup isn't ideal for immersive configurations where lower cutoff frequencies aren't needed and speakers are placed further from the mixing position.

Effective bass management is crucial, allowing main and surround speakers to focus on their optimal frequency ranges while delegating low frequencies to dedicated subwoofers. Introducing a standard 80 Hz (LFE) setting to the iLoud MTM facilitates seamless integration with subwoofers, aligning with the industry standard for bass management in multichannel and immersive setups.

Features:

• Built-in acoustic correction adapts to any placement
• Point-source performance ensures consistent sound quality regardless of distance
• Controlled dispersion minimizes acoustic issues
• Included in Dolby DARDT (Dolby Audio Room Design Tool) for precise installation
• Integrated LFE bass management
• Compact design suitable for easy mounting in any studio setup

Specifications:

• Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
• LF Drivers: 2 x 3.5" polypropylene custom-made mid-woofers
• HF Driver: 1" low distortion, back chambered silk dome tweeter
• Acoustic Design: DSP tuned bass reflex
• Number of Amps per Speaker: 2
• Amplifier Type: High efficiency Class-D
• Total Power: 100W RMS
  • LF Power: 70W RMS
  • HF Power: 30W RMS
• Crossover Type: Linear Phase Variable Order
• Crossover Frequency: 3.1kHz
• Frequency Response: 50 Hz to 24 kHz +/- 2dB (-6dB at 40 Hz uncalibrated, -3dB calibrated)
• Phase Response: System coherence within +/- 15° from 200Hz to 20kHz
• Sensitivity at +4dBu: 0dBu signal generates 100 dB SPL @ 1 m
• Sensitivity at -10dBV: -11dBu signal generates 100 dB SPL @ 1 m
• Maximum SPL @ 1m:
  • 103dB from 200Hz up (sine wave)
  • 95dB at 100Hz (sine wave)
  • 93dB (pink noise)
• Placement Setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
• LF Extension Switch: Sets -3dB point of frequency response at 40, 50, 60, or 80 Hz (LFE)
• LF Switch: Low shelf, +2dB or -3dB from 100Hz down
• HF Switch: High shelf, +2dB or -2dB from 8kHz up
• Desk Switch: -4dB at 160Hz and +1dB at 1.8kHz
• Calibration: Fully automatic built-in digital calibration, microphone included

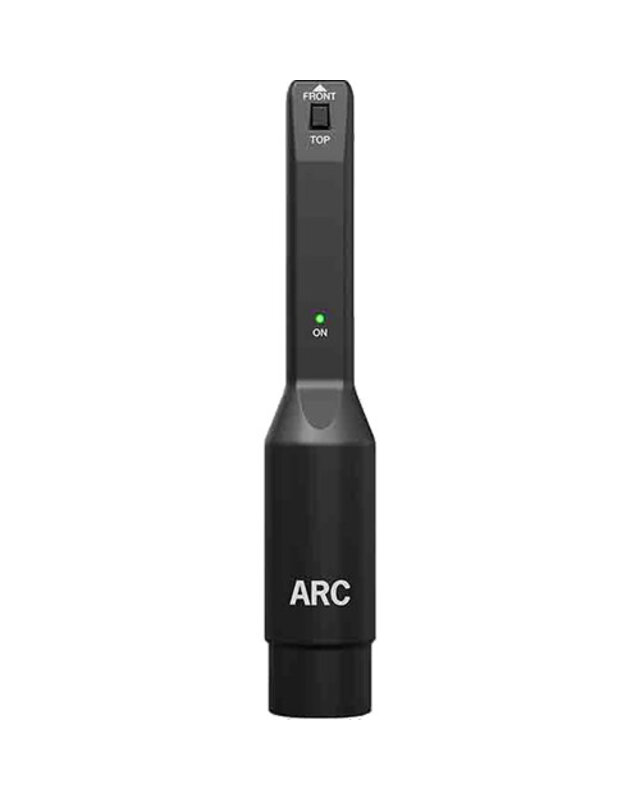

  • Measurement Microphone: Omnidirectional, MEMS based precision measurement microphone
• Full DSP Control

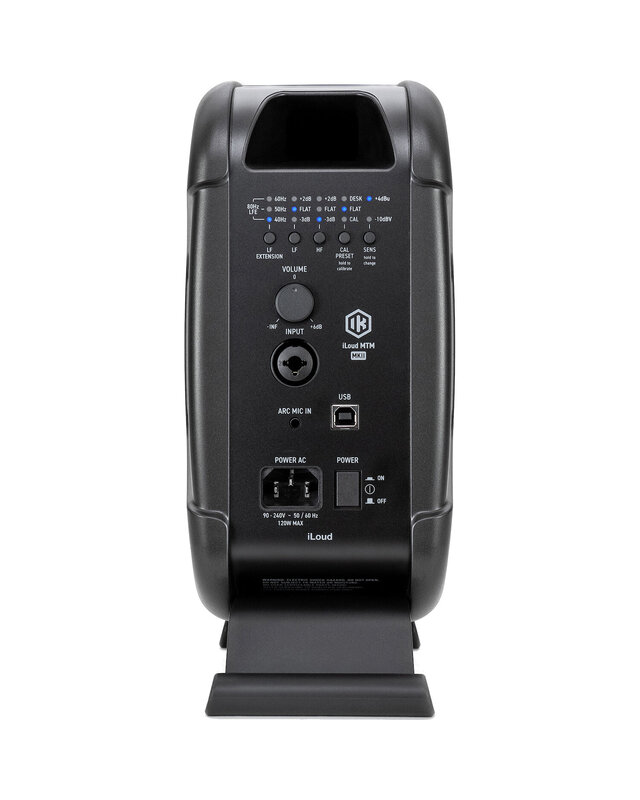

• Connectors: 1 x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
• Power Requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption

Includes:

• 11 x iLoud MTM monitor
• Power cord
• ARC Microphone
• ARC Microphone clamp
• ARC Microphone cable
• Tilting stand
• Horizontal support feet
• Locking key
