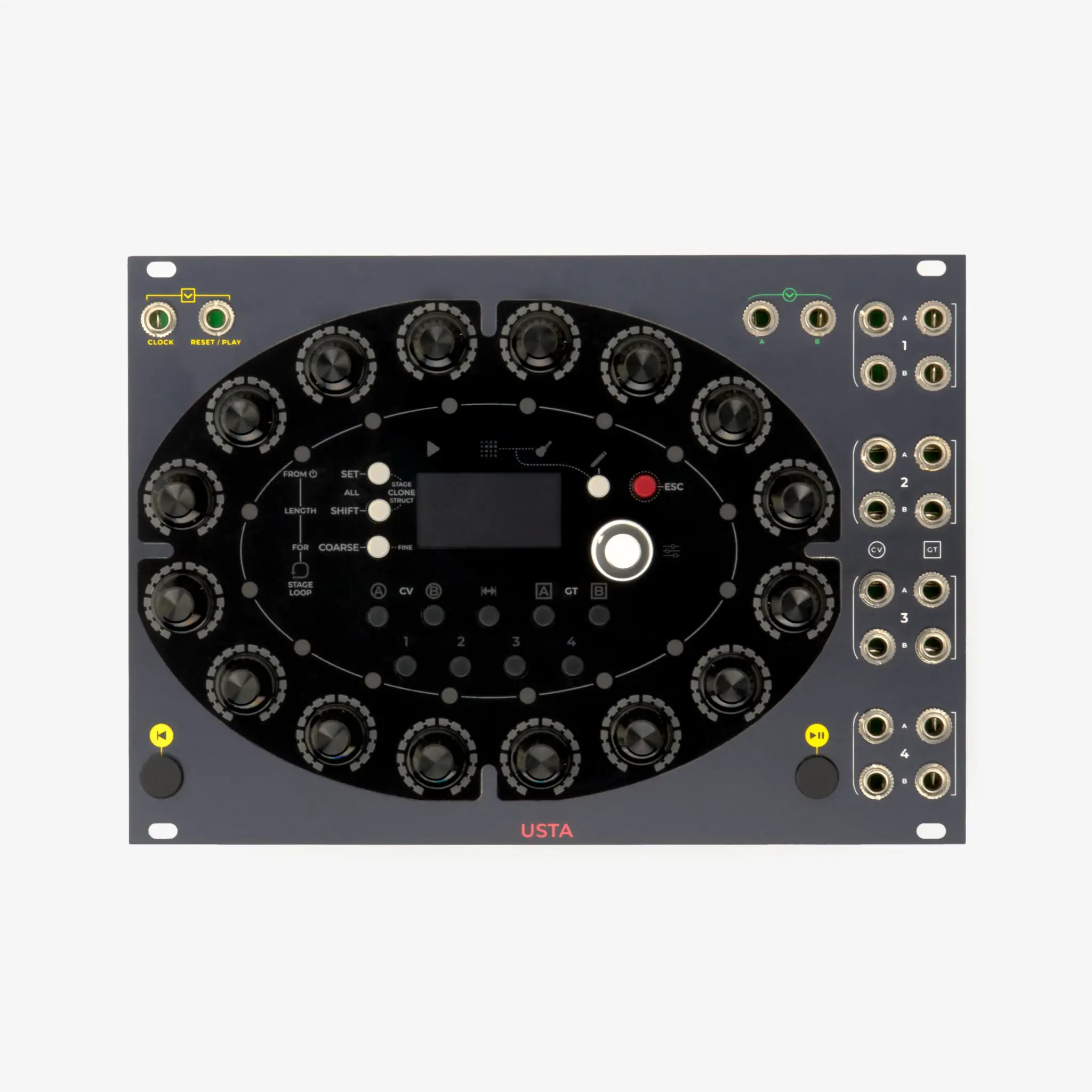

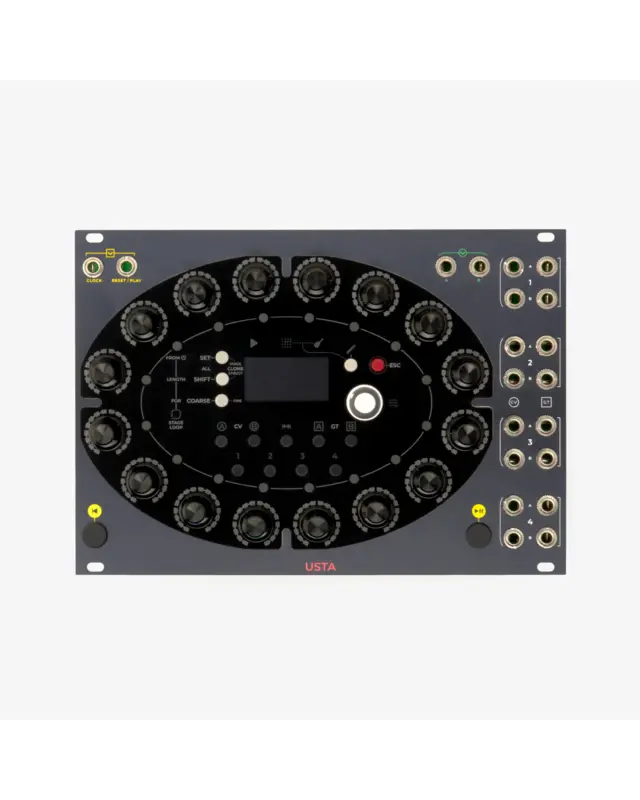

usta / ˈusta / s.f. [probably from an ancient Germanic form, cfr. German Nüster, English nostril] – the trail left by the prey. Idiom., more common: ‘good sense’, ‘wisdom’. Idiom. a usta ‘by heart’. The ‘Usta’ sequencer follows both of those meaning: literally, it gives your patch a trail to follow; more broadly, it offers you a way to approach your composition ‘by heart’, without too much planning.
Size | 36 HP |
Depth
| 38 mm
|
Current draw | 260 mA @ +12 V 50 mA @ -12 V |
Recommended warmup time | 30 min |
CV input impedance | > 90 KΩ |
CV input resolution | 12 bit |
CV input amplitude steps | ~ 4.15 mV
|
CV input voltage span | -5 to 10 V |
Gate input impedance | > 100 KΩ |
Gate input minimum trigger amplitude | > 1.5 V |
Gate input minimum pulse period | 800 µs |
CV output impedance | < 50 Ω |
CV output resolution | 16 bit |
CV output amplitude steps | ~ 0.26 mV |
CV output voltage span | -5 to 10 V |
Gate output impedance | < 50 Ω
|
Gate output amplitude | 10 V |
Manual you can find here: MANUAL
