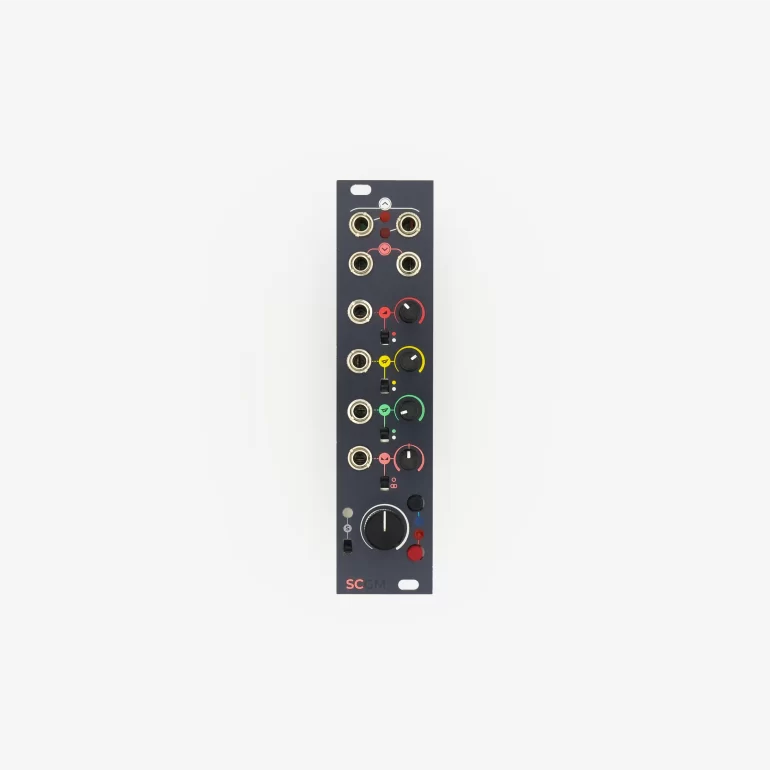

The Stereo Channel is a single-channel stereo module for the CGM Eurorack mixer, fully compatible with every other product of this family.
Thanks to its advanced I/O configuration, it can work as stereo-to-stereo, mono-to-mono, mono-to-stereo, and stereo-to-mono.
The gain control and the two mono FX sends can work in pre or post-fader mode, and the panpot can also work as a dual mono crossfader, making it suitable for blending two mono sources into a single mono sum.
All the parameters are voltage-controllable for creative mixing automation.
Size | 6 HP |
Depth
| 38 mm
|
Current draw | 70 mA @ +12 V 45 mA @ -12 V |
Recommended warmup time | 30 min |
Audio input impedance
| > 10 KΩ (mono)
> 20 KΩ (stereo)
|
Audio output impedance
| ≥100 Ω
|
CV Input impedance | > 90 KΩ
|
Maximum output level before clipping | ≥ 17 dBu |
Direct output gain scale | 11 dB |
Send to G/G (2016) gain scale | 18 dB |
Frequency response | 0.01 to 40 KHz
|
Harmonic distortion | < 0.3 %
|
Panpot center position tolerance | < 1.5 dB
|
Max VCA attenuation | ≤ 70 dB |
Mechanical mute, PFL, and Solo-in-Place complete the feature set suitable both for studio and live performances.
Manual you can find here: MANUAL
