Description
Shape Twin

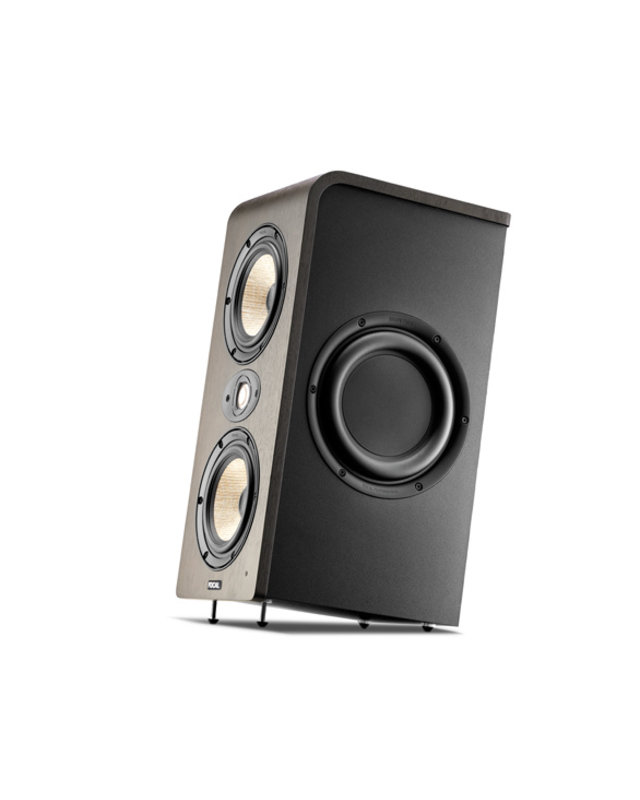

The Focal Shape Twin is a 2x5" 2.5-way active studio monitor designed to deliver reliable monitoring accuracy for audio engineers, producers, and musicians in home, project, and commercial studios. A walnut veneer covers the top and front of the MDF cabinet, which houses the 1" M-shaped tweeter and two 5" flax-cone woofers—the lower speaker handles 40 to 180 Hz and the upper speaker covers 40 Hz to 2.5 kHz. Each speaker component is driven by Class-AB amplification.
The dual 8" passive radiator design yields extended low-frequency performance while allowing placement near walls. TMD suspension and a Neutral Inductance Circuit contribute to enhanced linearity and minimized distortion throughout the monitor's 40 Hz to 35 kHz frequency response.

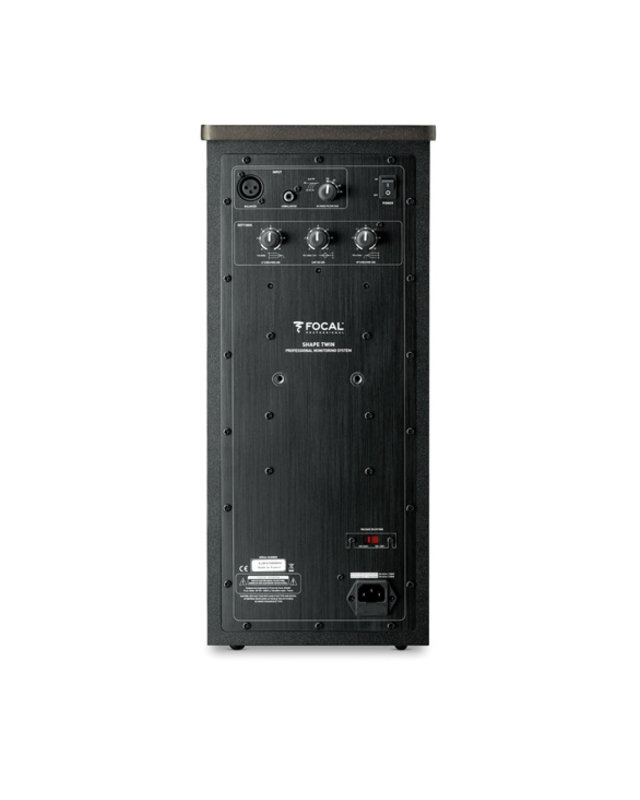

Inputs include a balanced XLR 3-pin connector and an unbalanced RCA coaxial jack on the rear panel, which also offers a 3-band EQ with an adjustable high-pass filter. In addition to tonal controls, imaging modifications are available via the height-adjustable decoupling points.
Accessories and Installation

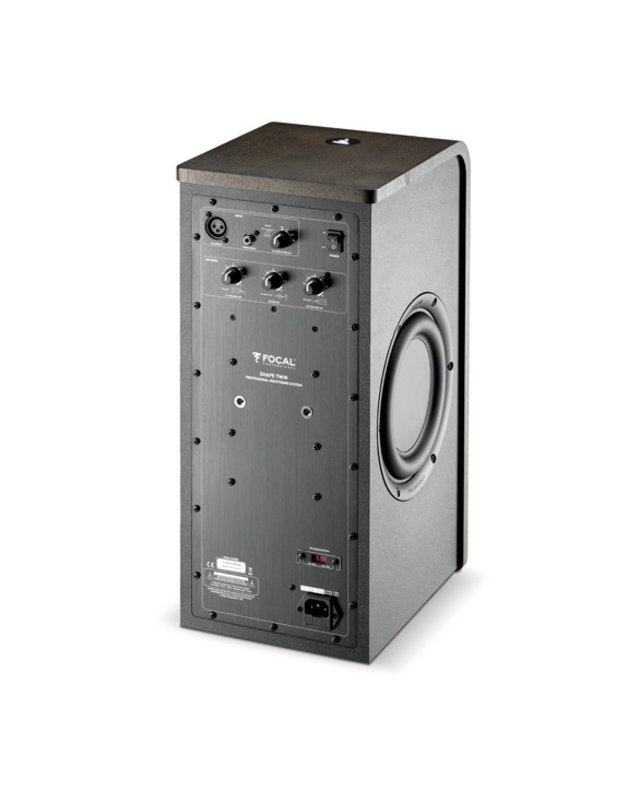

The Shape Twin comes with four decoupling spikes, which are height-adjustable to solve problems created by monitors not being at the same height as the listener. The angle changes the height of the soundstage to best suit the height of the sound engineer. A clever finishing touch to the spikes is their rubber coating, which improves isolation of the loudspeakers in relation to their support. The monitor is supplied with three specific protective grilles for the two woofers and the tweeter. Particular attention has been paid to efficiency, with a design which enables the grilles to be removed or assembled without tools. For wall or ceiling mounting, there are two M6 threaded holes on the back of the speaker.
Key Features
- Two 5" Flax-Cone Woofers
- Dual 8" Passive Radiator
- M-Shaped Tweeter
- Class-AB Amplification
- 40 Hz to 35 kHz Frequency Response
- 3-Band EQ & Adjustable High-Pass Filter
- Neutral Inductance Circuit
- TMD Suspension
- Height-Adjustable Decoupling Points
- MDF Cabinet with Walnut Top and Front
More information - Focal
