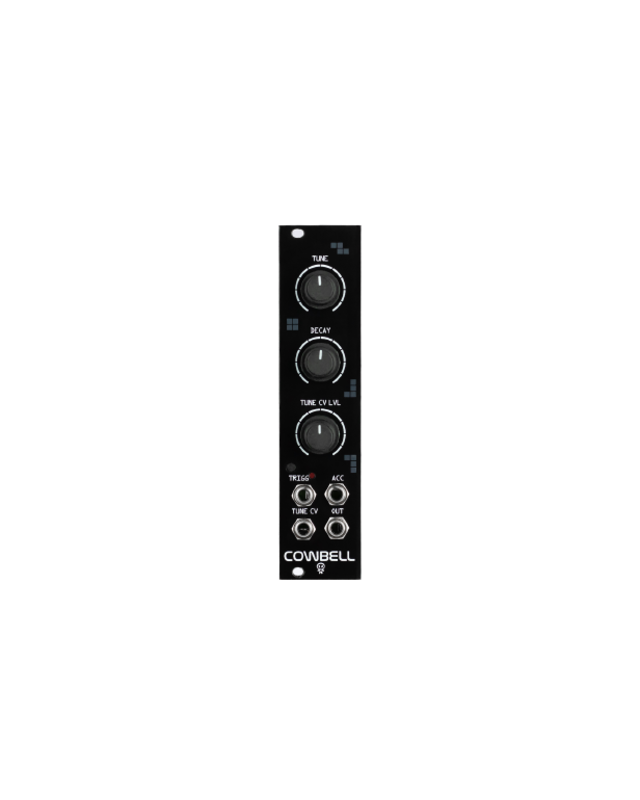

Features
- Manually and CV controlled tune
- Decay control
- Manual trigger
- Accent input
- Module width - 6HP
- Module depth – 35mm
The module is developed in collaboration with the French company e-licktronic.
Technical specifications:
Decay range | 120ms - 1100ms |
Audio output level | -5...+5V |
CV level (full span) | -5V - +5V |
Trigger level | 5V |
Trigger time | 1ms |
Accent CV level | 10V |
Power consumption | 14mA@+12V 10mA@-12V |
Module width | 6 HP |
Module depth | 40 mm |
