Erica Synths

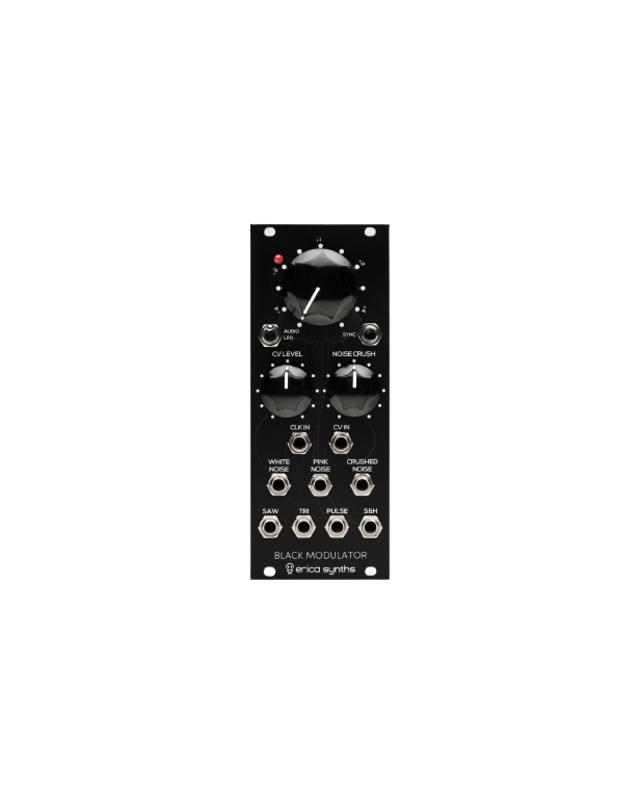

Black Modulator V2
€179,00
incl. VAT
Payment options
Deliveries are carried by
Physical Stores In Riga and Rotterdam
14 Day Money Back Guarantee
Buy Now Pay Later options (in3, Klarna)
DescriptionBlack Modulator V2
Erica Synths Black Modulator is a modulation and noise source
Features
- LFO with saw, triangle and pulse outputs
- LFO/Audio range switch, LFO synchronization to the external clock
- Zener diode-based noise generator for massive, full spectrum white noise
- Pink noise filter
- Noise crush knob and crushed noise output – fade from 1 bit noise to individual random trigger bursts
- Clockable sample and hold circuit
- S&H circuit based on rare, high quality S&H chip
- S&H CV and clock inputs
The module consists of LFO/audio frequency oscillator with three simultaneous waveform outputs, Zener diode-based noise generator with three noise flavors and clockable S&H circuit.
Technical specifications:
| LFO frequency | 0,2 Hz - 25 Hz |
| Audio rate frequency | 18 Hz - 750 Hz |
| LFO output level | -5 - +5 |
| Noise output level | 10Vptp |
| S&H CV input level | up to 20Vptp |
| Power consumption | 48 mA @ +12V 36 mA @ -12V |
| Module width | 10 HP |
| Module depth | 25 mm |
