all analog signal path inspired by & based upon famous westcoast synthesis – a module in the tradition of harmonic generation based on additive synthesis
2 discrete OTA triangle-core VCOs both with hard- (resetable) and soft- (inverting) syncs. The cores are self made custom encapsulated circuits with decent results of tracking (up to 6 octaves) as well as fine temperature stability
multi-turn frequency knobs sweep up to 10 octaves
simple and efficient oscillator tuners
Selectable tracking (1 or 1.2 v/oct) by setting a jumper (we believe at last a few wigglers will appreciate that)
instant thru-zero linear FM with the Strong-Zero VCO core update
deep, metallic timbres, entirely new sphere of sounds from light whistles to weird noises
together with Grand Terminal creates powerful 2-operator modular FM-synth
Power consumption:
180 mA +12V
215 mA -12V
0 mA 5V
Dimensions:
30 HP
26 mm deep

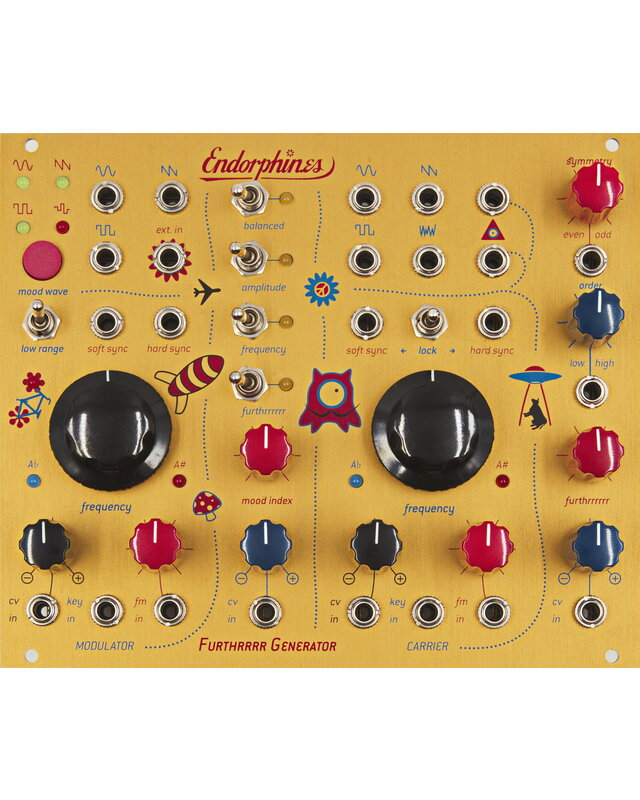

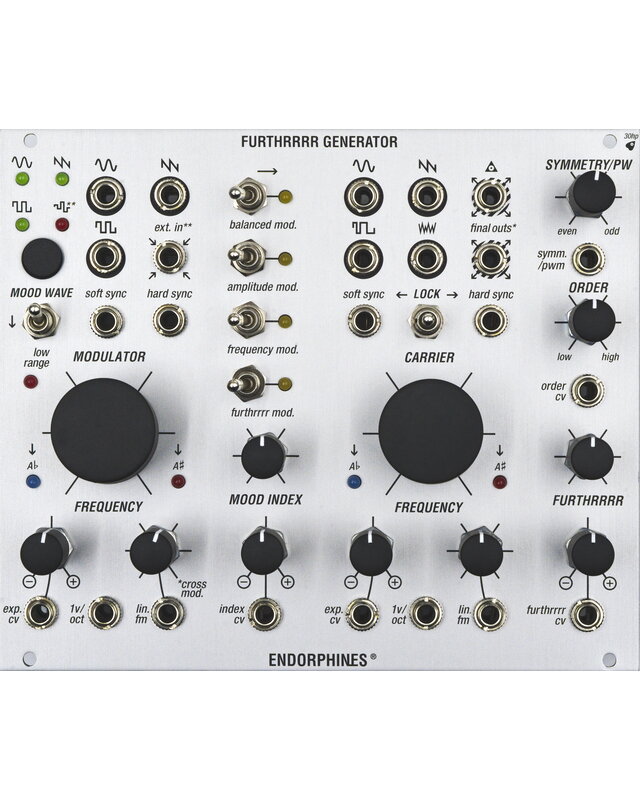

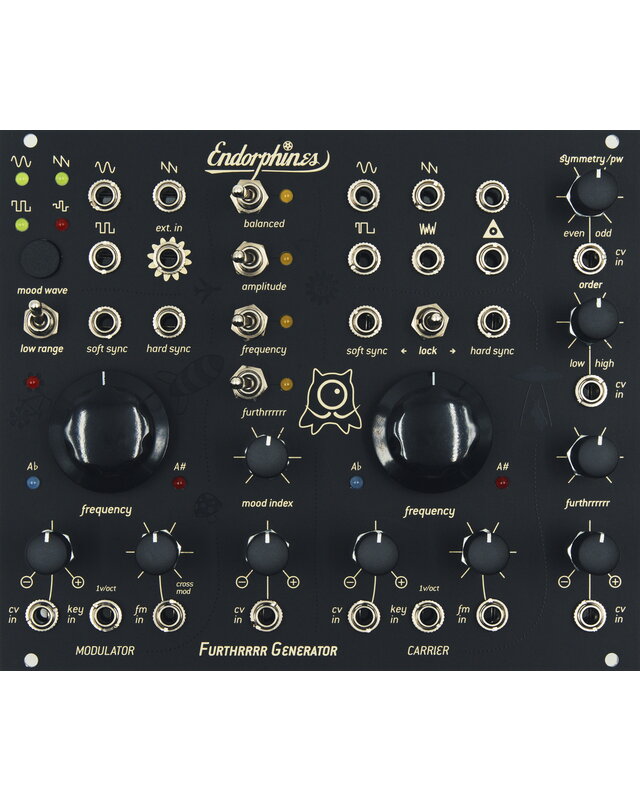

More information you can find here: Furthrrrr Generator Dual VCO
