Digitakt II

Send yourself to another sampling dimension. With DigitaktII, you can weave splintersof sound in stereo, ripped from the moment and brought to your fingertips formarvelous audio manipulation and beat arraying.

Preserve or distort reality as you sodesire with 16 tracks ready for stereo or mono samples, or MIDI. Choose from severalswappable filters for each track and utilize a wide assortment of effects and modulation,pull on enhanced processing power, and enough memory for a lifetime of samples.Further tasty features like a Euclidean sequence generator, an extended 128 stepsequencer, kits, trig modes, an extensive sample library, and a modular workflow to playwith ensure your sonic-montage sculpting potential will know no beat-making bounds.

Specifications

Audio track features

• 16 × stereo or mono audio tracks, or MIDI tracks
• 5 × selectable SRC (audio) machines:
Oneshot
Werp
Stretch
Repitch
Grid

• 5 × selectable FLTR machines:
Multi - Mode
Lowpass 4
Equalizer
Comb
Legacy LP/HP

• 1 × digital base width filter per track
• 1 × digital overdrive per track
• 1 × digital bit reduction
• 1 × digital sample rate reduction
• 1 × overdrive master effect
• 1 × stereo compressor master effect
• 3 × assignable LFOs per track
• 400 MB sample memory
• 20 GB +Drive storage
• Diverse sample library

MIDI track features

• 4 note polyphony per step
• 16 × assignable CC controls
• 2 × assignable LFOs per track

Performance features

• 4 × Trig modes
Tracks
Velocity
Retrigs (only works on audio tracks)
Preset pool (only works on audio tracks)
• Keyboard mode with 36 different scales
• Song Mode

Sequencer features

• 128 steps per pattern and track
• Individual pattern length per track
• Individual time scale multiplier per track

• Parameter locks
• Trig conditions & trig chance
• Retrig (audio tracks only)
• Micro timing
• 1 × Euclidean sequence generator per track

Send effects

• Saturator Delay
• Supervoid Reverb
• Panoramic Chorus

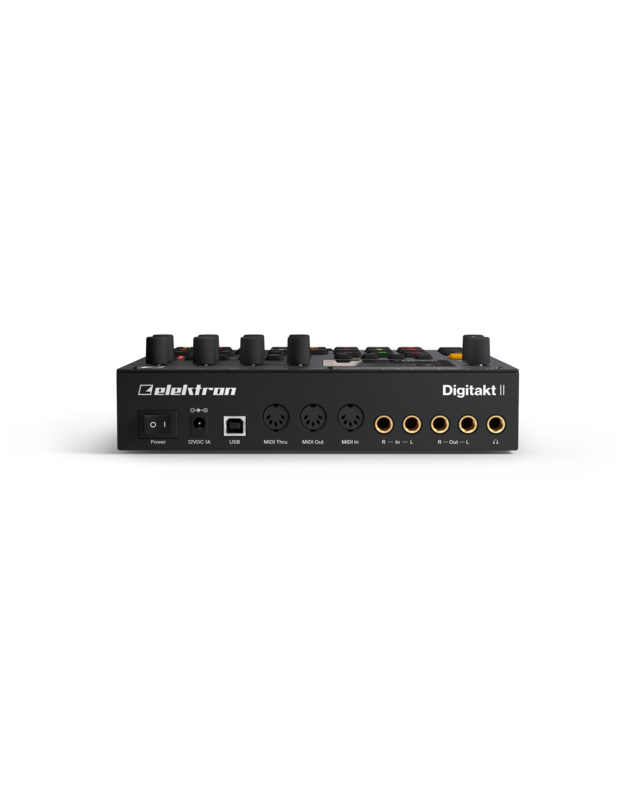

Hardware

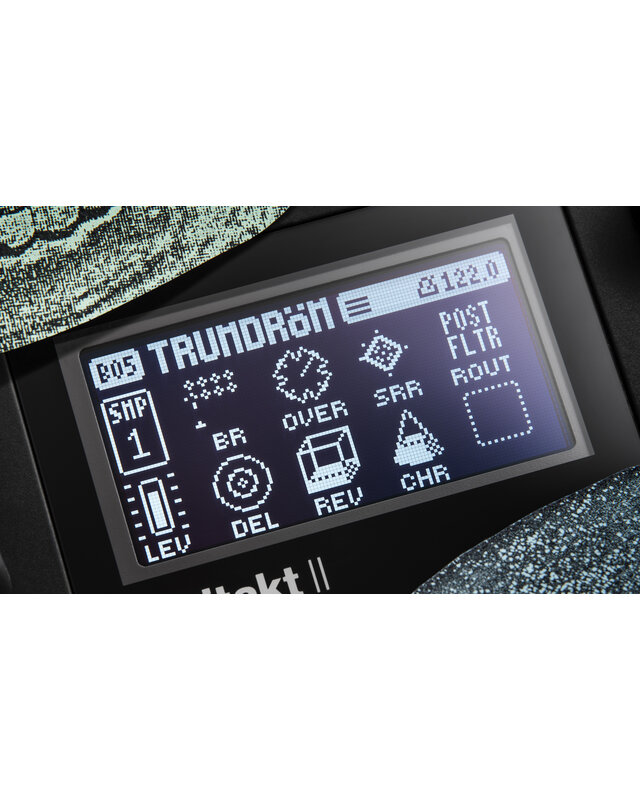

• 128 × 64 pixel OLED screen
• 2 × ¼” impedance balanced audio out jacks
• 2 × ¼” impedance balanced audio in jacks
• 1 × ¼” stereo headphone jack
• 48 kHz, 24 - bit D/A and A/D converters
• Hi - Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out

Physical specifications

• Sturdy steel casing
• Dimensions: W 215 × D 176 × H 63 mm (8.5′′ × 6.9′′ × 2.5′′) (including knobs and feet)
• Weight: approximately 1.48 kg (3.25 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm.

Miscellaneous

• Overbridge enabled
• Class Compliant USB Audio
• External Input mixer
• 3 year Elektron warranty

Included in the box

• Power Supply PSU - 3c
• Elektron USB cable
• Exclusive artwork
