AT-OC9XSL

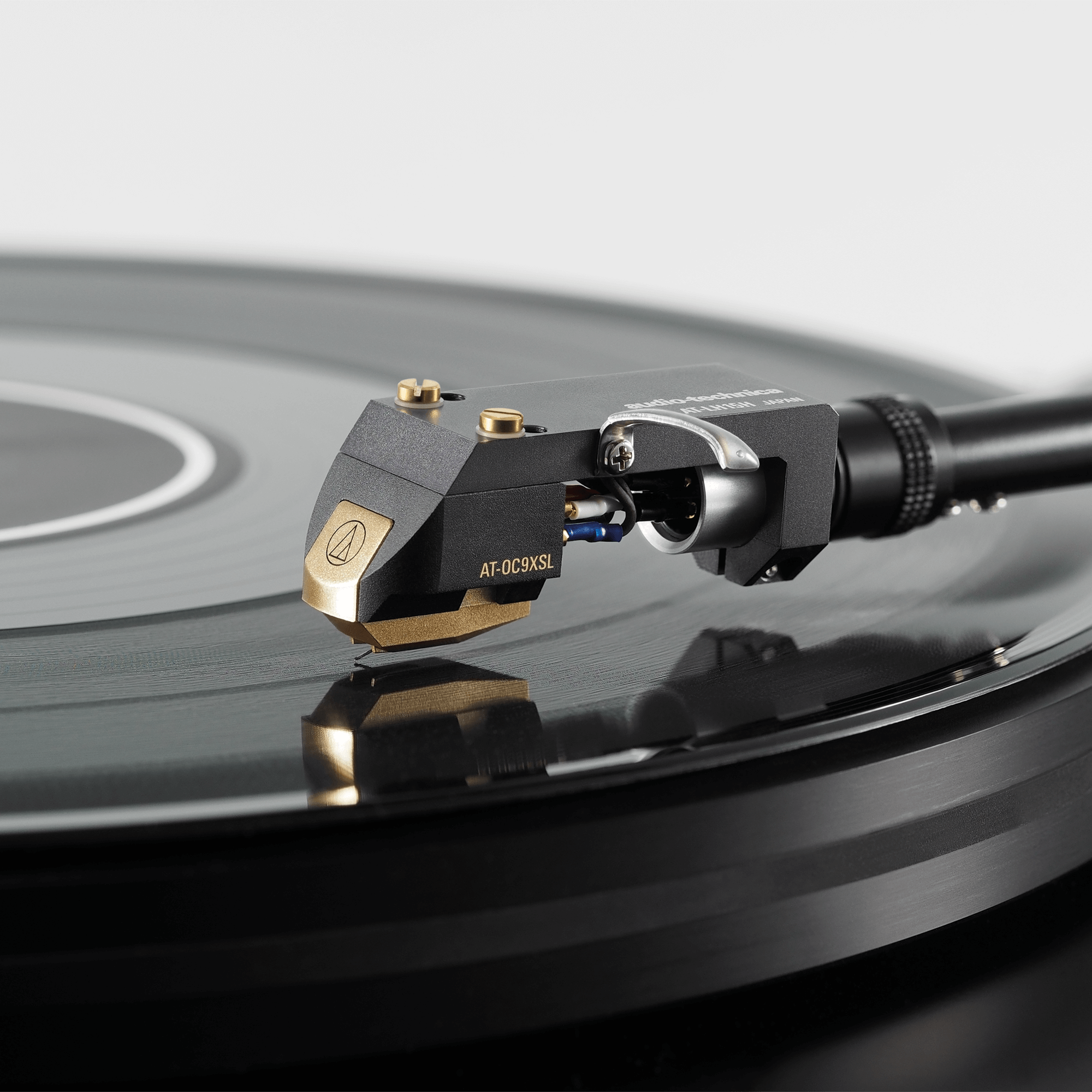

Audio-Technica AT-OC9XSL: Dual Moving Coil Stereo Cartridge with Special Line Contact Stylus

The Audio-Technica AT-OC9XSL is a premium moving coil cartridge designed for audiophiles seeking exceptional sound quality. It features a Special Line Contact stylus mounted on a boron cantilever, providing precise tracking and extended frequency response. The cartridge's rigid aluminum body reduces resonance, while the neodymium magnet and permendur yoke increase magnetic energy for enhanced performance.

Key Features:

• Special Line Contact Stylus: Offers precise tracking and captures fine audio details.
• Boron Cantilever: Provides superior rigidity and accurate stylus movement.
• Rigid Aluminum Body: Minimizes unwanted vibrations for superior audio reproduction.
• Neodymium Magnet and Permendur Yoke: Increase magnetic energy for improved sound quality.
• Pure Copper by Ohno Continuous Casting (PCOCC) Coils: Ensure pure audio transmission.

Technical Specifications:

• Frequency Response: 20 – 50,000 Hz
• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Impedance: 12 ohms
• Weight: 7.6 g

The AT-OC9XSL is suitable for listeners seeking enhanced audio fidelity and precise tracking capabilities.
