AT-OC9XSH

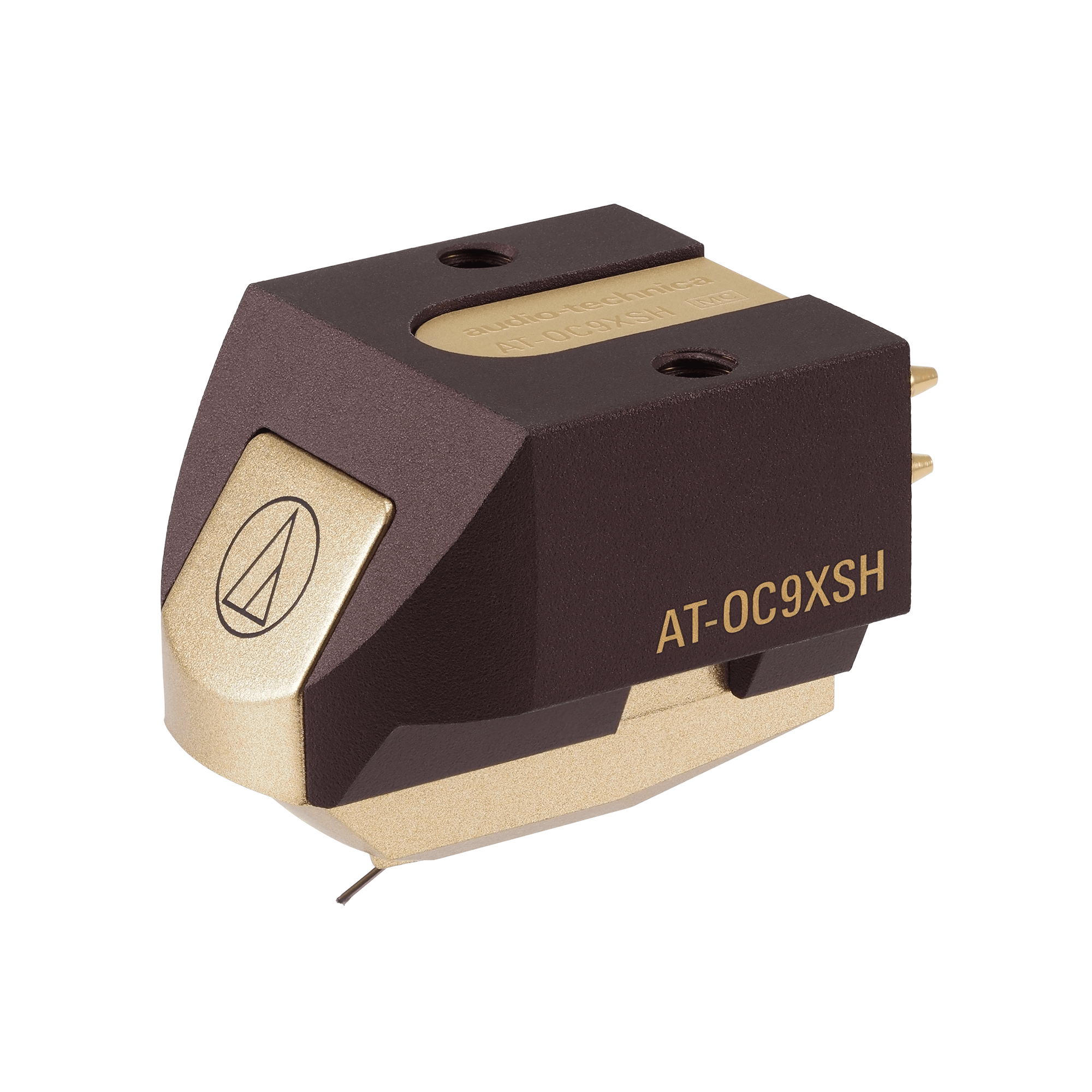

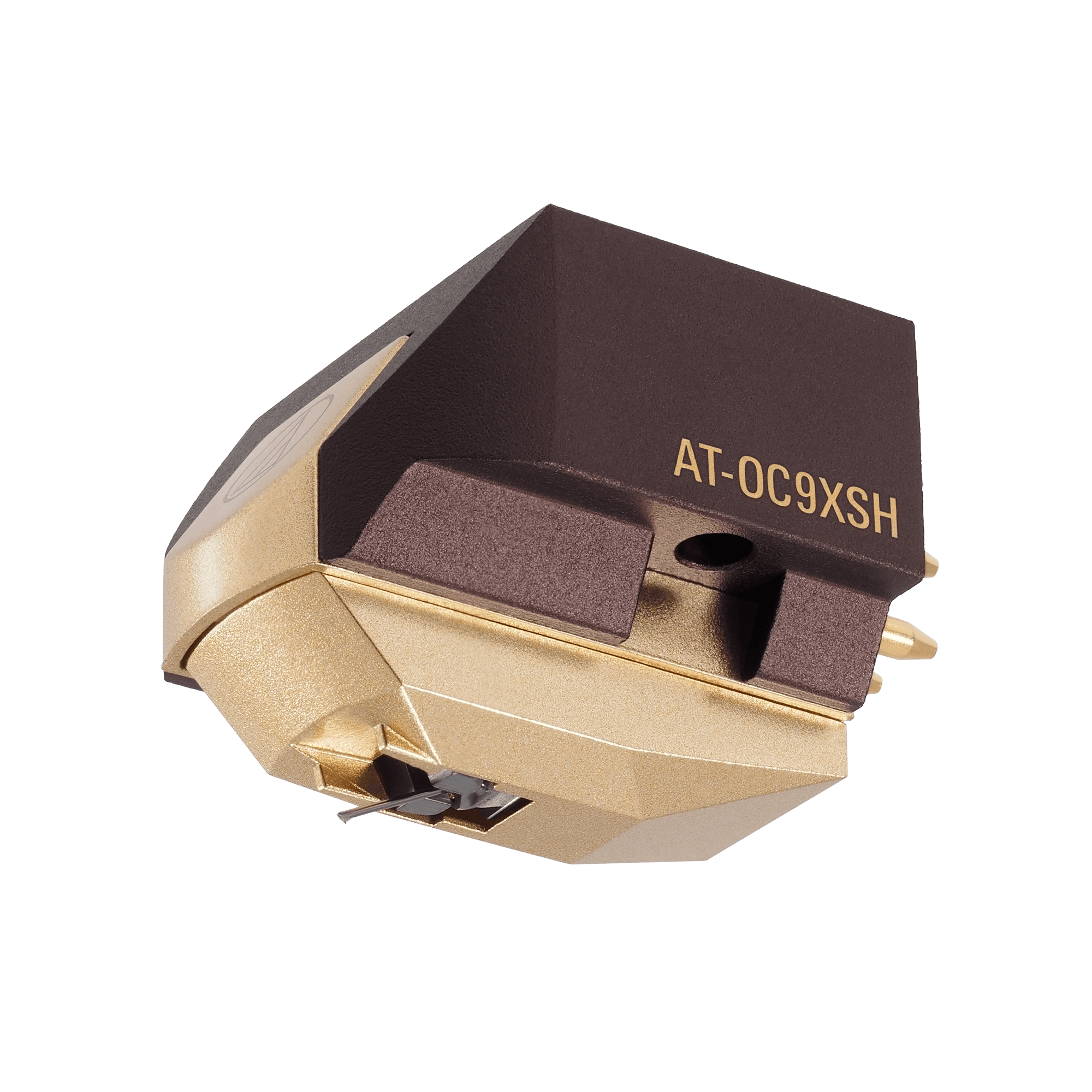

Audio-Technica AT-OC9XSH: Dual Moving Coil Stereo Cartridge with Shibata Stylus

The Audio-Technica AT-OC9XSH is a high-performance moving coil cartridge designed for audiophiles seeking detailed and dynamic sound reproduction. It features a Shibata stylus mounted on a boron cantilever, ensuring precise tracking and minimal distortion. The cartridge's rigid aluminum body reduces resonance, while the neodymium magnet and permendur yoke increase magnetic energy for enhanced performance.

Key Features:

• Shibata Stylus: Provides superior high-frequency response and low distortion.
• Boron Cantilever: Ensures excellent response characteristics.
• Rigid Aluminum Body: Minimizes unwanted vibrations for superior audio reproduction.
• Neodymium Magnet and Permendur Yoke: Increase magnetic energy for improved sound quality.
• Pure Copper by Ohno Continuous Casting (PCOCC) Coils: Ensure pure audio transmission.

Technical Specifications:

• Frequency Response: 20 – 50,000 Hz
• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec.)
• Channel Separation: 30 dB (1 kHz)
• Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Impedance: 12 ohms
• Weight: 7.6 g

The AT-OC9XSH is ideal for listeners seeking high-fidelity sound reproduction with minimal distortion.
