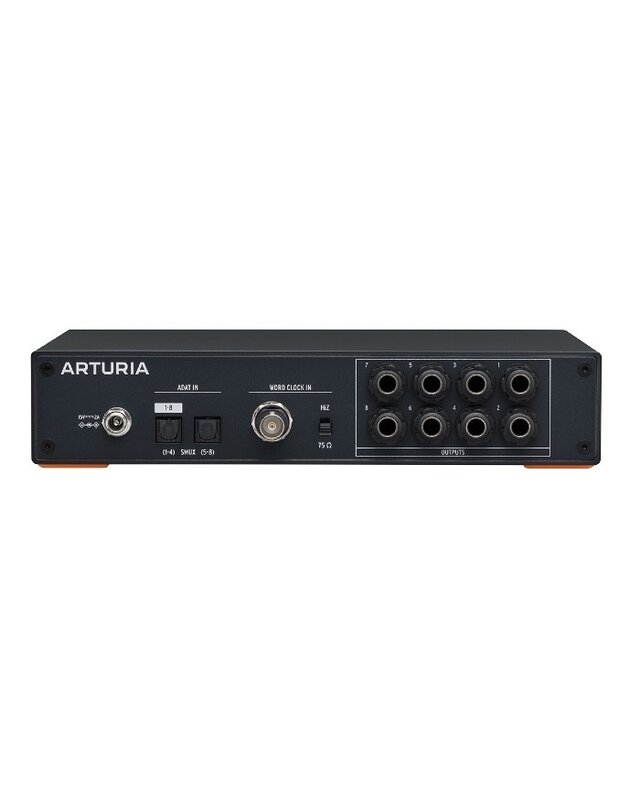

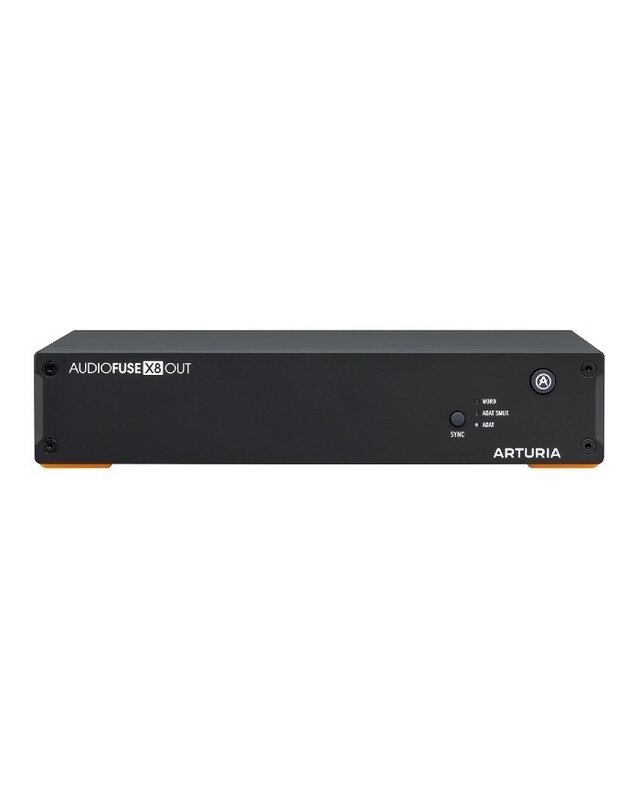

AudioFuse X8 OUT

The AudioFuse X8 IN & OUT are essential tools for recording producers and sound engineers who are looking for additional high-quality analog I/O. By extending digital connectivity, AudioFuse X8 provides more channels for instruments and outboard gear. By connecting to any interface or mixer with an ADAT port AudioFuse X8 is an affordable upgrade to an existing setup. It enhances studio flexibility and scalability while preserving audio quality, accommodating the demands of modern music production and sound design.

AudioFuse X8 OUT is an 8 channel ADAT-to-Analog output expander enabling you to send audio to outboard gear (hardware FX, mixing console...), add additional speakers and control an array of synths via DC-coupled output.

8x DC coupled outputs
World clock input on BNC
24-bit Cirrus Logic DA converters up to 96 kHz
Robust half 1-U rack chassis
Assembly kit included to rack two AudioFuse X8 units

A/D Converter

• Expander with 8 analogue DC-coupled line outputs via ADAT
• Allows you to send audio signals to outboard devices (hardware effects, mixer, etc.), add additional speakers and control synthesizers via DC-coupled outputs
• For producers and sound engineers who need additional analogue inputs for external equipment
• 24-bit Cirrus Logic DA converter with up to 96 kHz sampling rate
• Control element on the front panel with access to sync function
• Desktop design
• 8 Analogue outputs: 6.3 mm TRS jack
• One WordClock input (BNC)
• 2 x ADAT Optical inputs, SMUX support
• Mains connection
• Rack installation possible (up to two devices next to each other)
• Dimensions (W x D x H): 221 x 216 x 48 mm
• Weight: 1.37 kg
• Included software: Analog Lab Intro, Pre 1973, Pre V76, Filter Mini, Chorus JUN-6, Comp FET-76, Delay TAPE-201, Rev PLATE-140, Phaser BI-TRON, Pre TridA, Comp DIODE-609
• Sturdy 1U half-rack housing
• Includes power supply and mounting kit for two AudioFuse X8 units
