5059 Satellite

Elevate Your Mixing with the Rupert Neve Designs 5059 Satellite Shelford Edition

If you're working exclusively inside the box and looking to significantly enhance your mix, the Rupert Neve Designs 5059 Satellite Shelford Edition is the summing mixer you need. While DAWs offer unparalleled convenience, they often lack the sonic depth and character provided by high-quality analog gear. The 5059 Satellite bridges this gap, providing 16 channels, each equipped with individual level and pan controls, as well as insert and bus-2 send buttons. With two stereo buses featuring RND’s proprietary Silk Texture controls, you gain seamless integration with outboard equipment, comprehensive control over two separate stem mixes, and the ability to apply harmonic enhancement in two distinct flavors.

Rupert Neve Designs 5059 Satellite Summing Mixer Shelford Edition Features:

• Classic Neve: Class A, all transformer-balanced for exceptional sound
• Zero Crossover Distortion: Unmatched purity in audio performance
• Custom Transformers: Deliver galvanic isolation and a "larger than life" sound
• Standard-Setting: Sets a benchmark for rackmountable summing mixers
• 16 Inputs/Channels: Each with level controls, panning, and inserts; 2 stereo buses
• Flexible Routing: Send any input to stereo bus 1 or 2, each with variable Silk/Silk+ Texture
• Dual Stereo Outputs: Split input channels into 2 stems for further processing and mixing
• Dedicated Outputs: Stereo buses 1 and 2 each have their own XLR outs

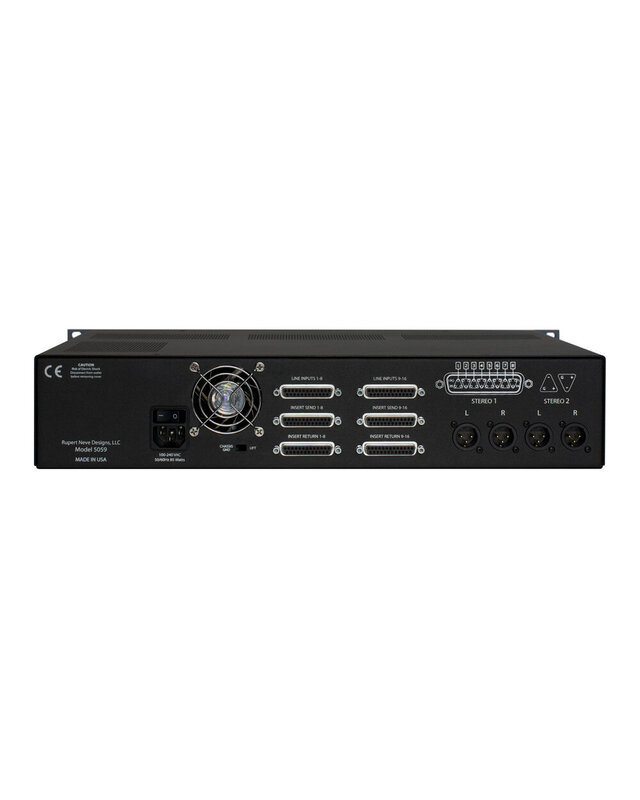

• Line Input & Inserts: DB-25 line input, insert send/return connectors
• Durable Build: Rugged 2U fan-cooled chassis with classic Shelford styling

Tech Specs:

• Type: Analog Summing Mixer
• Channels: 16
• Faders: 36 x Rotary Pots
• Inputs - Line: 2 x DB-25 (1-8, 9-16)
• Outputs - Main: 4 x XLR (stereo 1/2)
• Send/Return I/O: 2 x DB-25 (send 1-8, 9-16), 2 x DB-25 (return 1-8, 9-16)
• Buses/Groups: 2 x Stereo Bus
• Inserts: Channels 1-16
• Rackmountable: Yes
• Power Source: Standard IEC AC cable
• Height: 8.89 cm
• Width: 48.26 cm
• Depth: 20.32 cm
• Weight: 10.43 kg
