RME
HDSPe AIO Pro
€719,00
Payment options
Physische Geschäfte in Riga und Rotterdam
Weltweiter Versand
Jetzt kaufen, später bezahlen-Optionen (in3, Klarna)
Beschreibung

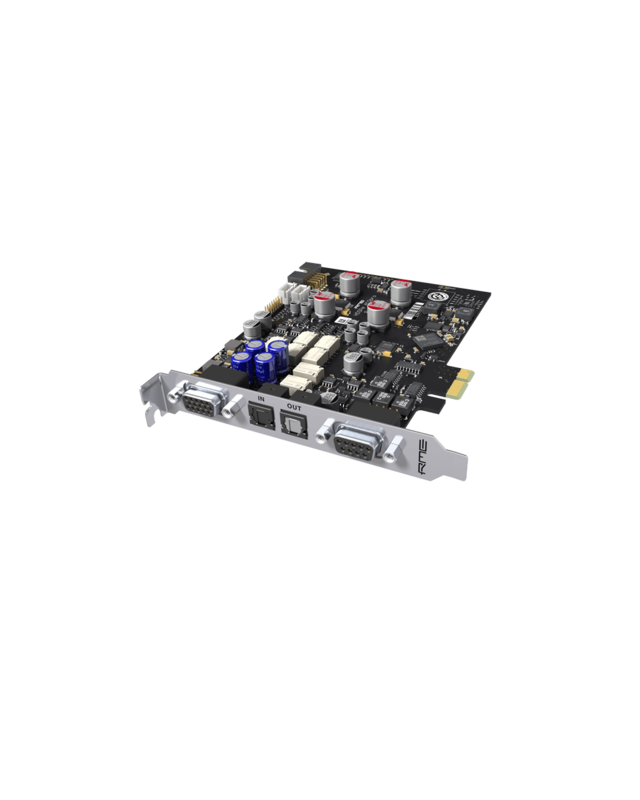

HDSPe AIO Pro
Utilizing technology from RME's top-shelf ADI-2 Pro AD/DA converter, the HDSPe AIO Pro delivers significant gains in signal-to-noise ratio performance while offering selectable reference levels and ultralow latency.
Between the card and its included breakout cables, there are eight channels of ADAT I/O, stereo AES/EBU and S/PDIF I/O, unbalanced stereo analog I/O, DIN 5-pin MIDI I/O, and a high-power headphone output, all simultaneously operational. The SteadyClock FS clock section ensures maximum jitter suppression of external clock signals along with low inherent jitter. Plus, optional modules can be used to add timecode and word clock connections for tight synchronization.
High-End Converter Technology
The HDSPe AIO Pro is based on the reference processors AK5572 and AK4490 derived from the high-end AD/DA converter ADI-2 Pro. The analog input range also uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu). In addition, RME has enhanced the outputs with additional reference levels (balanced: +24 / +19 / +13 / +4 dBu; unbalanced: +19 / +13 / +4 / -2 dBu) which allows even more versatile integration into audio systems. The HDSPe AIO Pro features a dedicated attenuator in the output section, resulting in an increased signal-to-noise ratio and a lower output impedance at low reference levels.
Transparent Headphone Output
A further highlight of the HDSPe AIO Pro is the newly developed, powerful, and extremely transparent headphone output. Thanks to mute relay including switchable output levels, there is no unwanted crackling noise at the headphone output and the analog line outputs when switching on the computer.

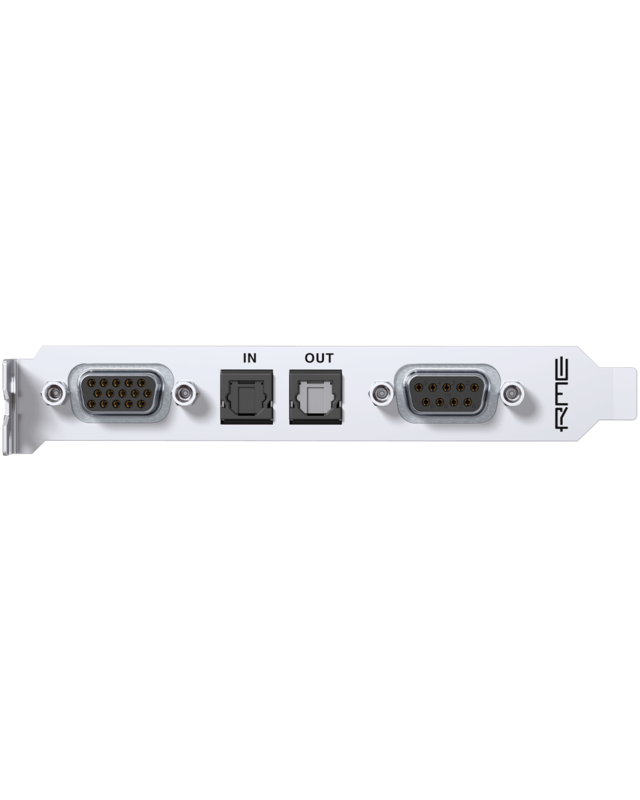

Analog and Digital Connectivity
- Stereo analog input and output with four selectable reference levels
- All analog I/Os capable of 24-bit / 192 kHz with a constant number of available channels
- ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- S/PDIF stereo digital I/O, capable of 192 kHz
- AES/EBU stereo digital I/O, capable of 192 kHz
- High-power headphone output with a separate D/A converter
- MIDI I/O with 16 channels of high-speed MIDI
- DIGICheck, RME's unique metering and analyzing tool
- TotalMix FX, a 760-channel mixer with 42-bit internal resolution
- Native PCI Express uses no PCI to PCI Express bridge
More information - RME
