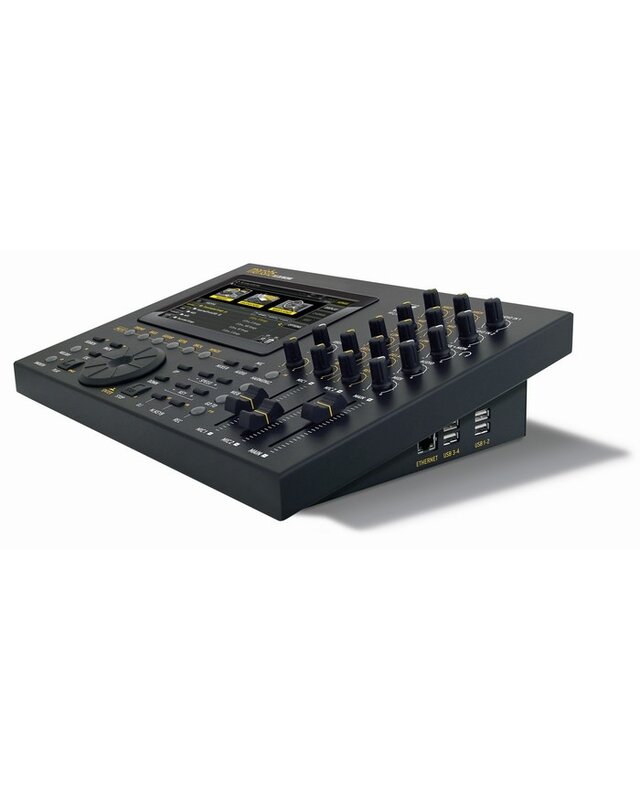

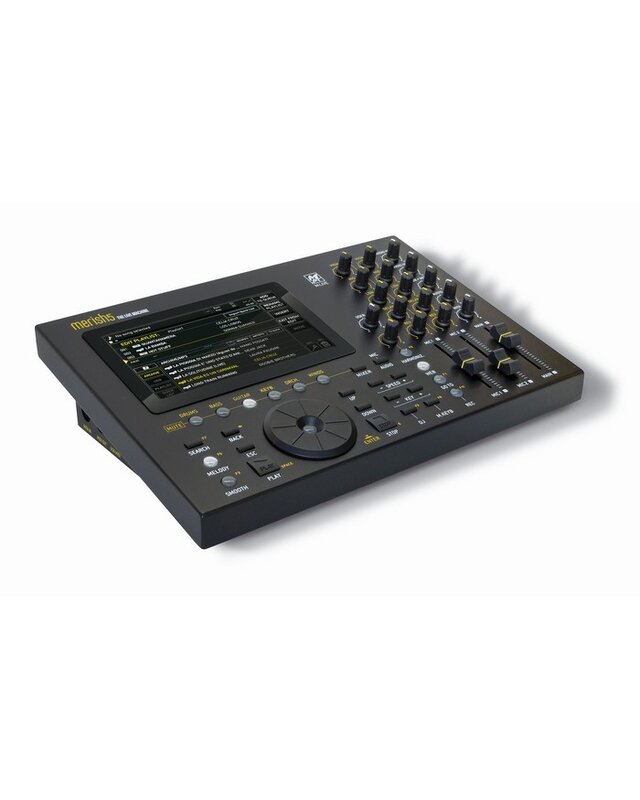

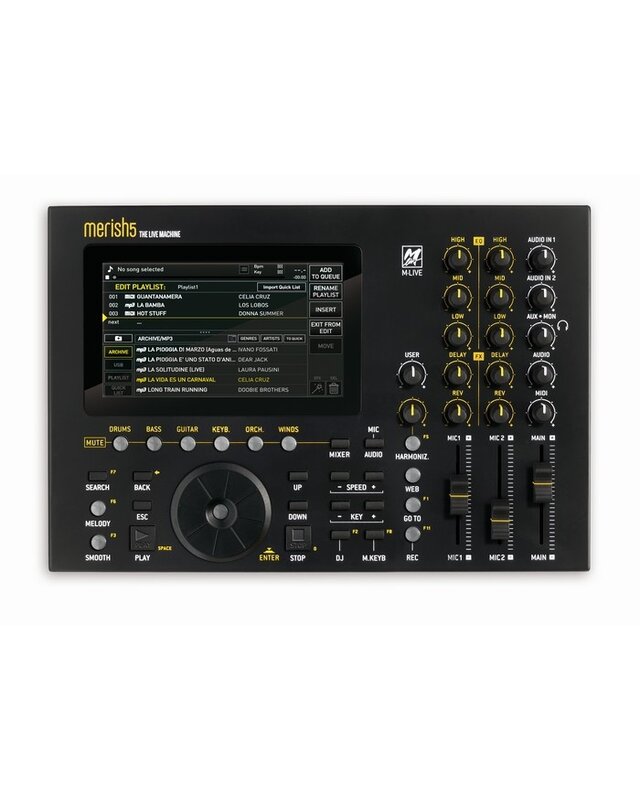

Merish 5 Plus

Live player and sound module

• 512 Sounds
• 58 Drum kits
• 659 Percussions
• Polyphony: 240 voices
• 2 Effects for MIDI files
• 2 Effects for Microphone
• Mass storage: 512 GB SSD
• 2 Microphone inputs incl. 48V phantom power
• Compressor and noise gate
• Microphone input 1 with 4-voice vocalist
• Digital mixer for editing MIDI files and audio (also multitrack) and EQ (3-band parametric per channel + 10-band master EQ)
• Audio recorder
• Direct internet connection to song-service.de (songservice.it)
• Sound patches can be controlled via MIDI or USB master keyboard
• Data transfer via WLAN or Ethernet via Merish 5 Manager Software for PC/Mac
• Dimensions (W x D x H): 350 x 240 x 80 mm
• Weight: 2.7 kg
• Incl. 355 backing tracks (300x MIDI, 50x mp3, 5x multitrack audio), M-Pen, Grinta Live, Prompter and Audio Pro plug, power cord, power supply, warranty certificate, user manual, extra manual

Connections:

• Microphone input 1+2: XLR/Jack combo connector
• Line In 1 (L + R): 2x 6.3mm Jack
• Line In 2 (L + R): 2x 6.3mm Jack
• Audio Out (L+R, balanced): 2x 6.3 mm Jack
• Headphone output: 6.3mm stereo jack
• AUX Mon output (L + R): 2x RCA
• Click Out: 6.3mm Jack
• Footswitch: 6.3mm Jack
• HDMI Video Out
• Connection power supply 12V
• 4x USB to device
• Ethernet
• MIDI In
• MIDI Out
• USB to host
