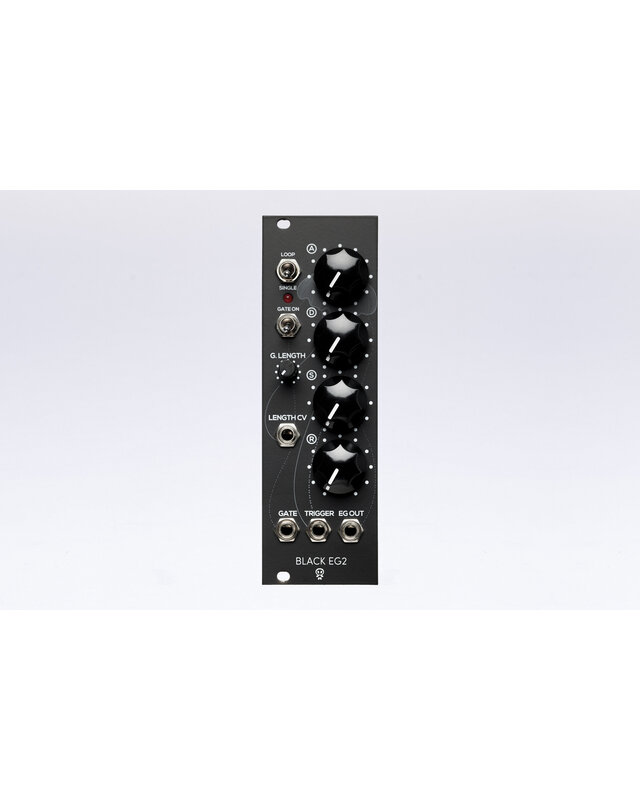

Black EG2

The Erica Synths Envelope Generator 2 is a re-triggerable, looping envelope generator with some unconventional features that are very useful for experimental setups. What sets the Black EG2 apart from other envelope generators is its optional GATE LENGTH setting, which allows for generating full ADSR envelopes even if a short trigger is used at the input. Likewise, in LOOP mode, the module outputs a full ADSR envelope instead of a classical AD envelope. The gate length is both manual and CV controlled, which allows for using this envelope generator in compact modular setups controlled by trigger sequencers only.

Technical specifications:

Gate input level	3…10V
Envelope amplitude	0…10V
Attack time	0…7,4”
Decay time	0…19”
Sustain level	0…10V
Release time	0…17”
Gate length	0…3,7”
Panel width	8HP
Module depth	25mm
Power consumption	29mA@+12V, 33mA@-12V
